1904 Columbia's First Disc Graphophone Front Mount Model AJ

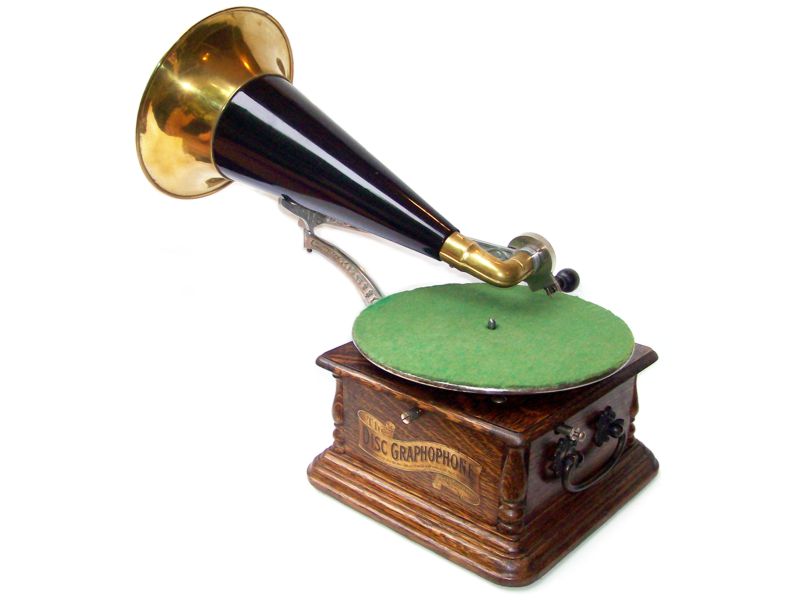

All original 1904 Columbia AJ Front Mount Disc Graphophone with Original Witch's Hat Horn and Analyzing Reproducer, in Museum-like Condition



In a Nutshell

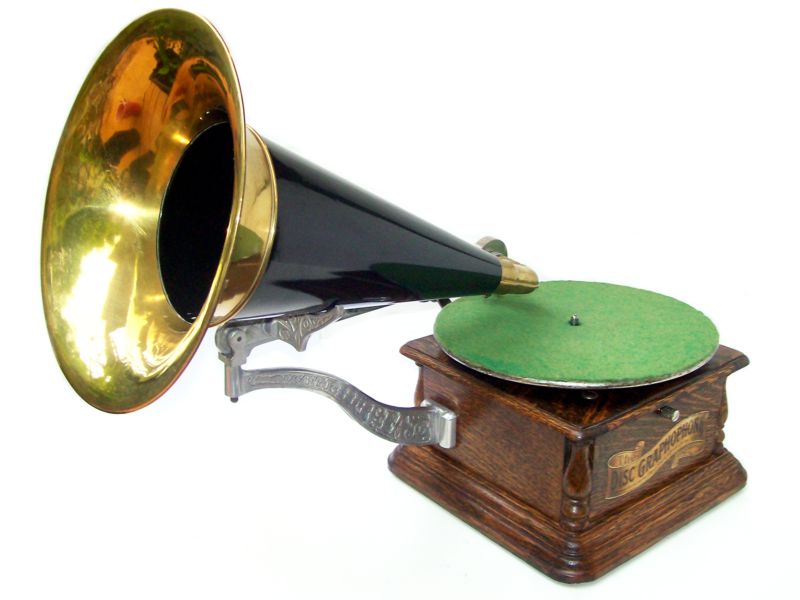

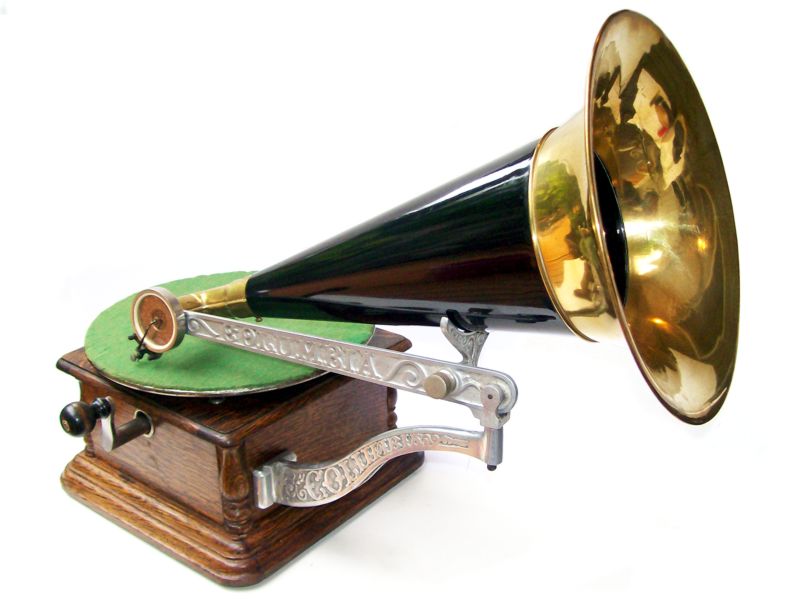

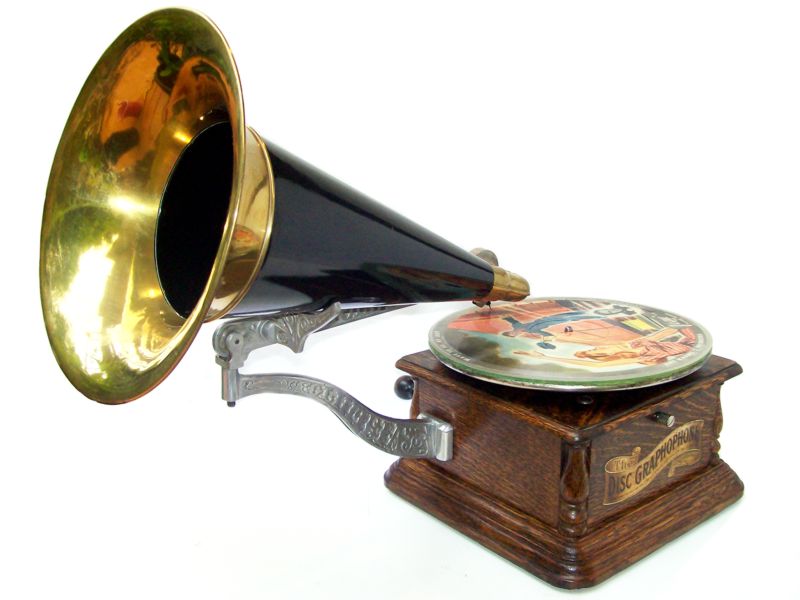

Middle priced type AJ of Columbia's 1901 first disc graphophones AK, AJ, AH, in a later high-box version from 1904. ln a beautiful streamlined quarter sawed oak cabinet, with as new original metal parts, an extremely loud long-throat "analyzing" reproducer and with an original black and brass witch's hat horn with brass elbow, all in mint condition, this front mount graphophone is a workhorse, but one with unmatched beauty

Introduction:

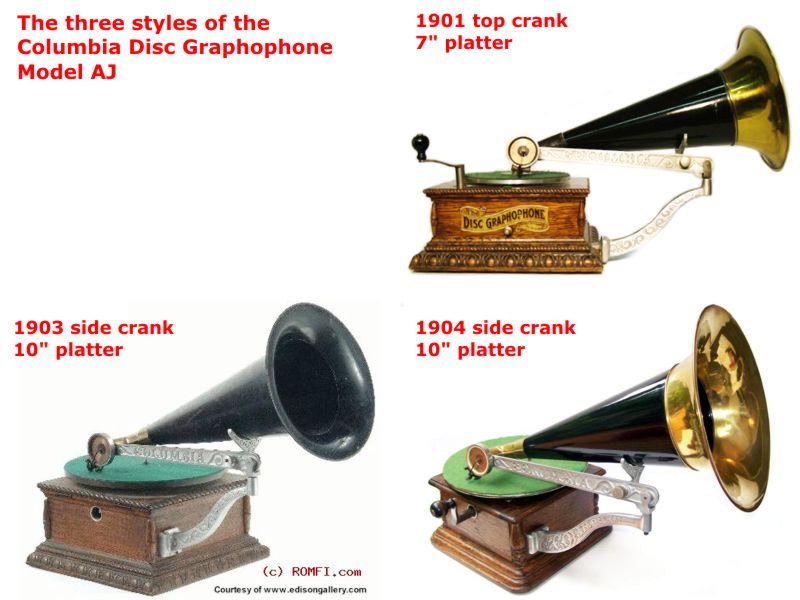

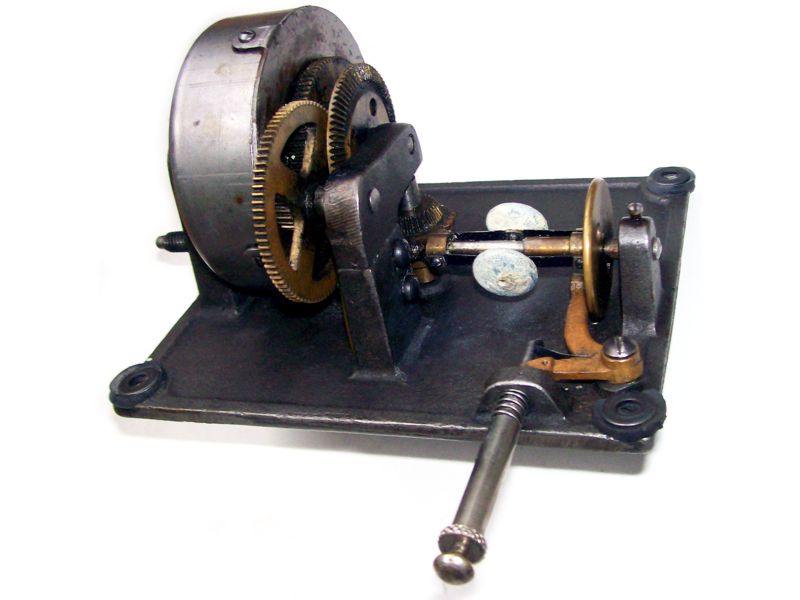

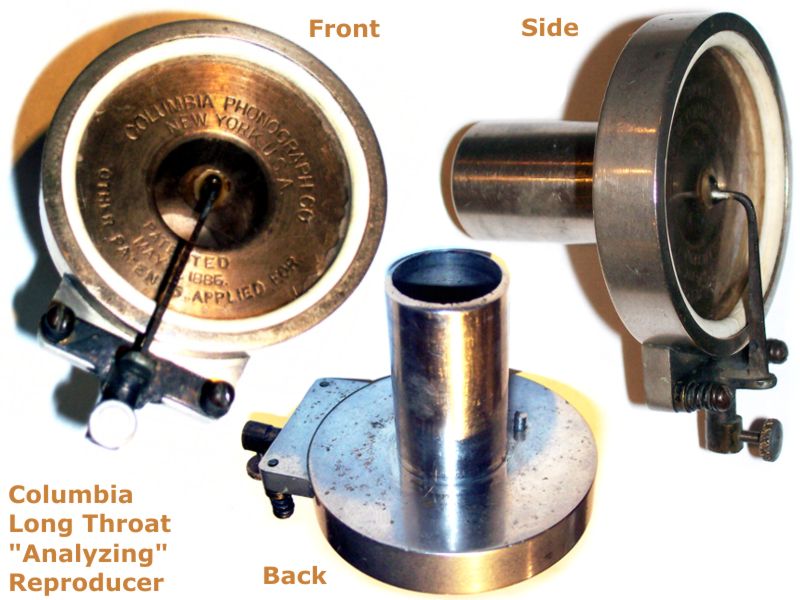

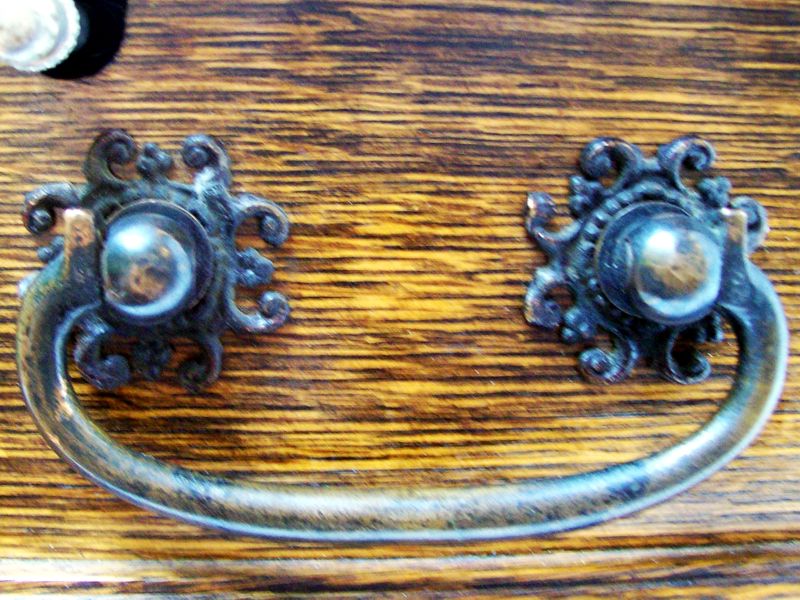

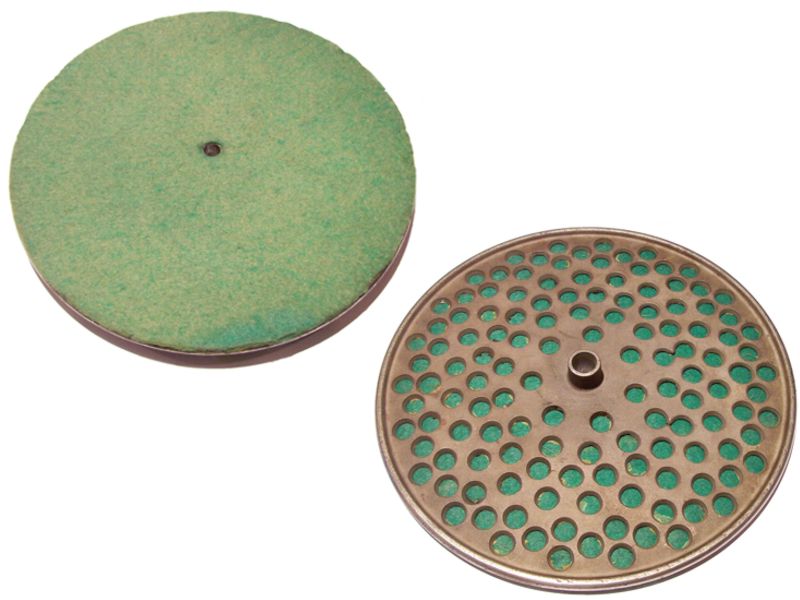

In 1901 Columbia started to sell their first disc graphophones and records. Models AK, AJ and AH were front mount graphophones playing Emile Berliner's format of 7" diameter discs, and were sold for 15, 20 and 30 dollars, respectively. Here we have the middle priced model AJ in a later high-box version from 1904, that is less dainty (ref.2 has both for comparison, see also pict.28). It features a 10" turntable platter and has a single spring motor, capable to play one full 10 inch record. The machine is equipped with its original and extremely powerful long-throat "Analyzing" reproducer. It is an early version still featuring a thumbscrew needle holder instead of the later clip-type. Also all other parts are original, including both aluminum tone arm and travelling arm, the carrying handle, the turntable platter and crank, and even the 16" witch's hat horn with 9 inch brass bell, and the brass elbow, parts of this early graphophone, that often are reproductions.

Additional information:
ref.1: http://www.youtube.com/watch?v=mPKoRJTy6iQ
ref.2: http://www.telephonecollectibles.com/Phonographs.html
ref.3: http://www.dorothyshay.com/


About my graphophone:

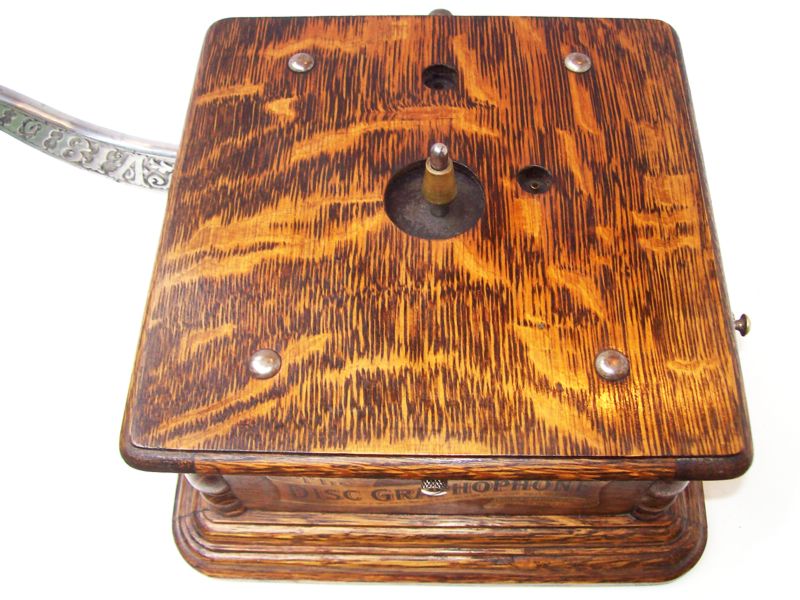

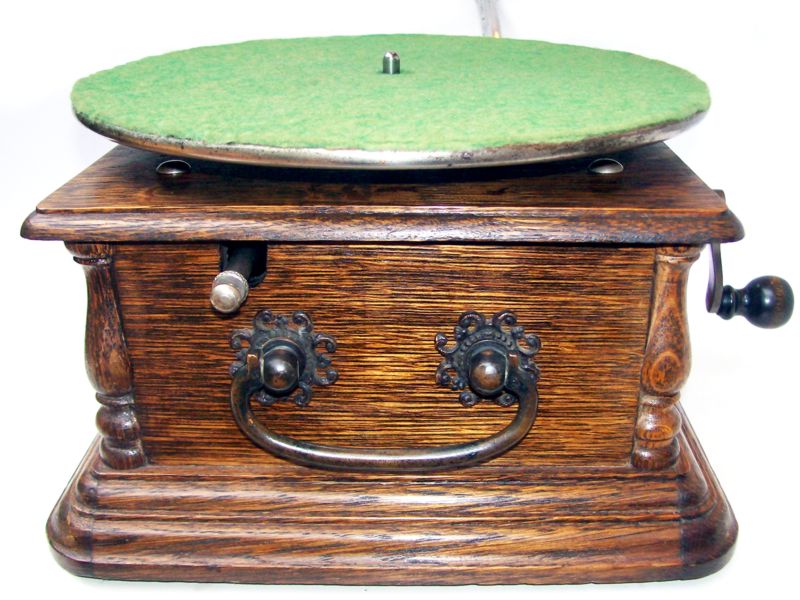

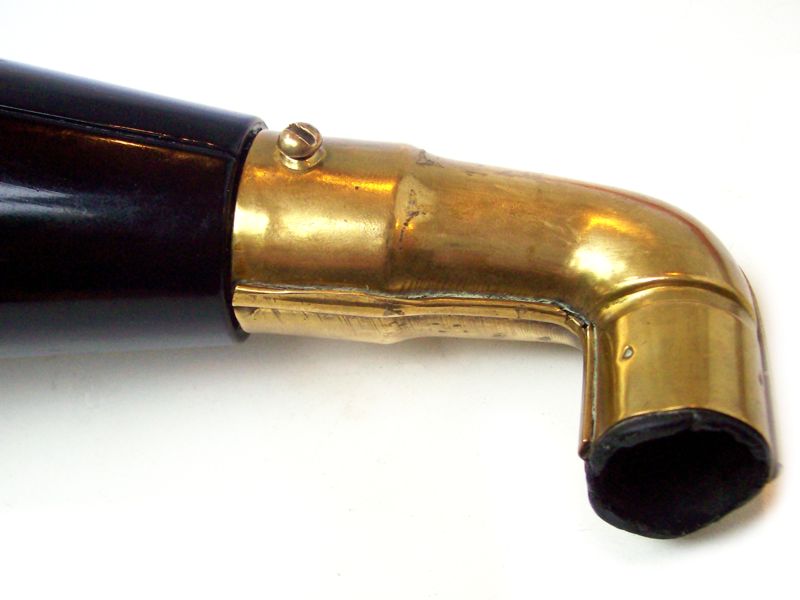

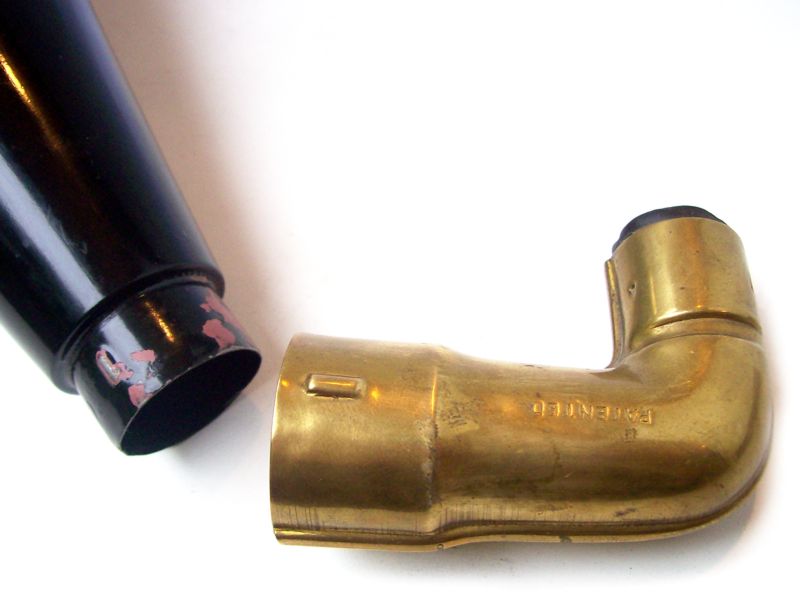

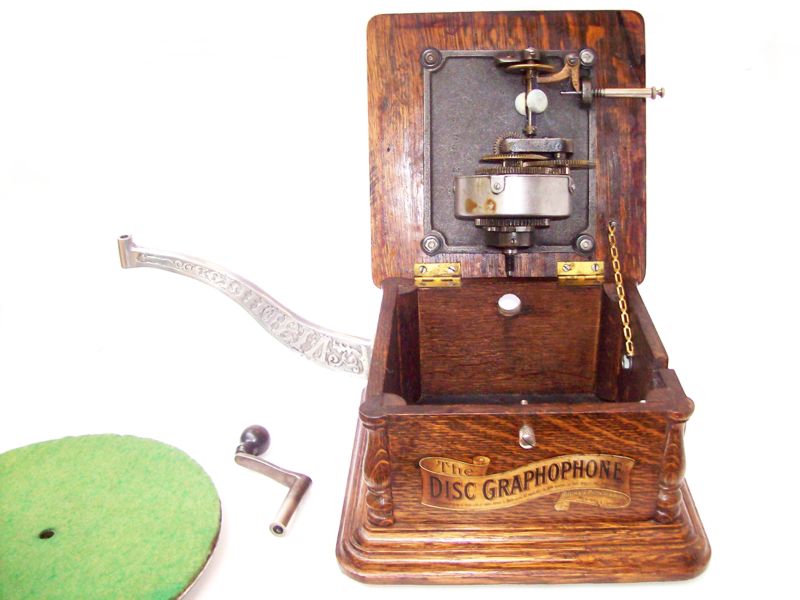

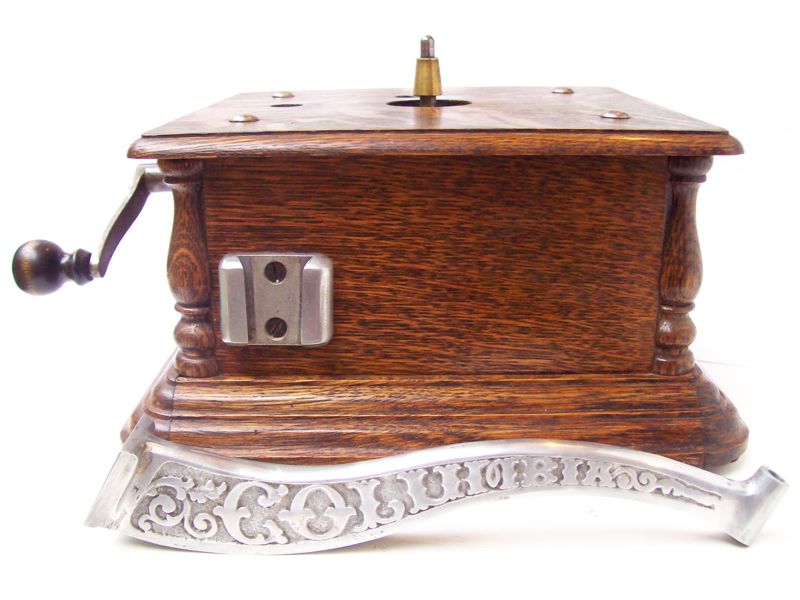

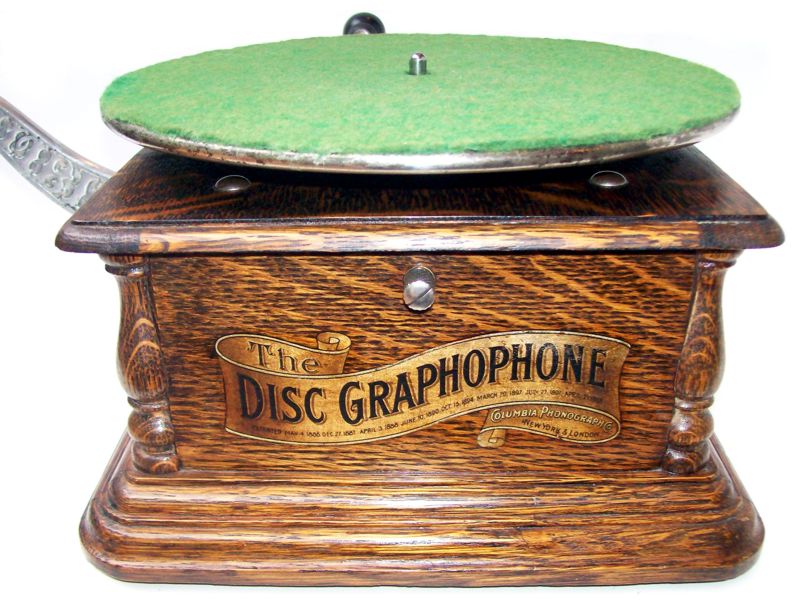

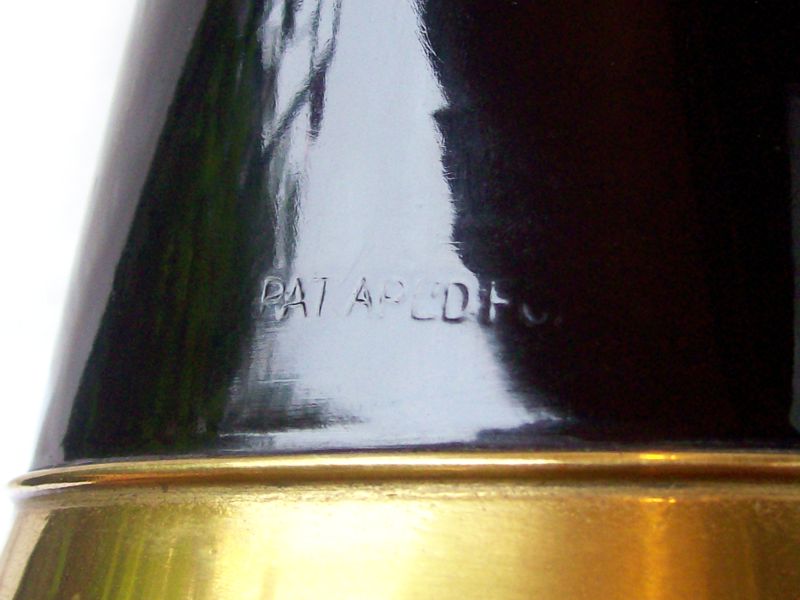

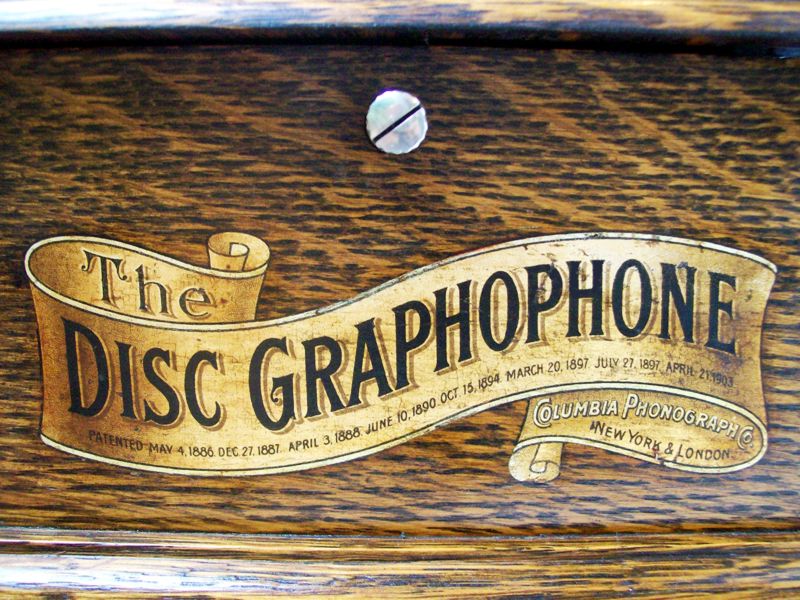

The quarter sawed oak cabinet is in mint condition, the 1903 Columbia decal (pict.11) almost undamaged. All metal parts are original and have a nice patina without corrosion. The elbow is formed with a slot that matches a corresponding ridge in the horn end (pict.23). Both are stamped with patent information (picts.23,24). The horn's original paint is untouched and there are no dents. In order to highlight the longevity of Berliner's invention I play a record from 1947, that is near the end of the 78 rpm era, on this graphophone, that was built more than 40 years before. The title is Mountain Gal, and is sung by the Park Avenue Hillbillie Dorothy Shay at the peak of her career. As you will convince yourself the original long-throat analyzing reproducer has an incredible volume, it is in fact the loudest I presently own (click on pict.27 or go to youtube (ref.1) to watch the youtube video and read Dorothy's grandniece Kathy's comment). Please e-mail
me (Kris) for any questions, ich spreche Deutsch, je parle Français.



Click on Thumbnails to Supersize Pictures
  Your browser is not Javascript-enabled
So, please Skip this Slideshow to see pictures

Here are the specifications:

Technical Description of Item
Manufacturer Columbia Phonograph Co., New York
Model AJ (late version 1904)
Type Front mount 10" disc graphophone
Production Year 1904

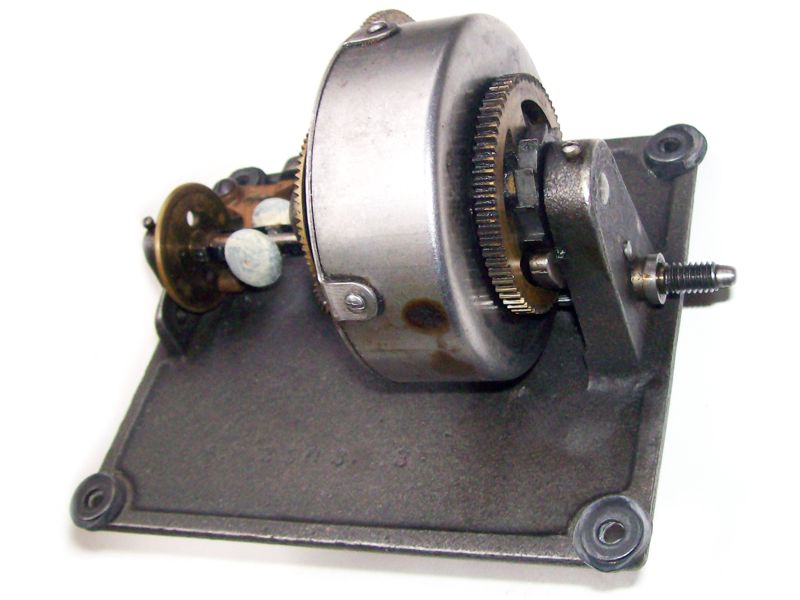

Serial Number AJ 3503 (motor)
Cabinet Quarter sawed oak
Controls Speed, on/off, crank
Size (WxDxH) 10" x 10" x 6½"
Weight 13 lbs = 5.7 kg
Reproducer Long throat "Analyzing" reprod.
Horn Original black and brass witch's hat horn with brass elbow
Horn size and weight 16" x 9½", 1 lb = 0.4 kg

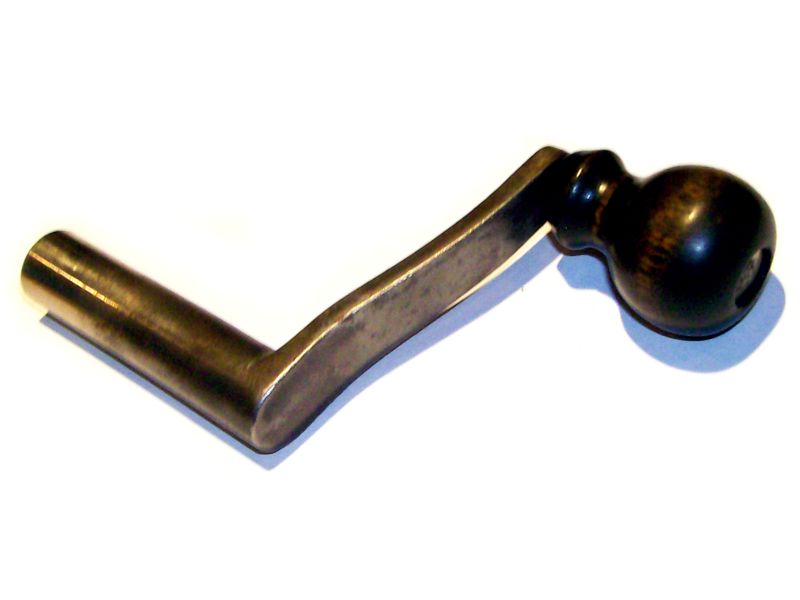

Other Extras Original threaded crank
Add-ons 3 10" 78rpm records of your choice
Comment Beautiful front mount graphophone for your daily 78rpm needs
