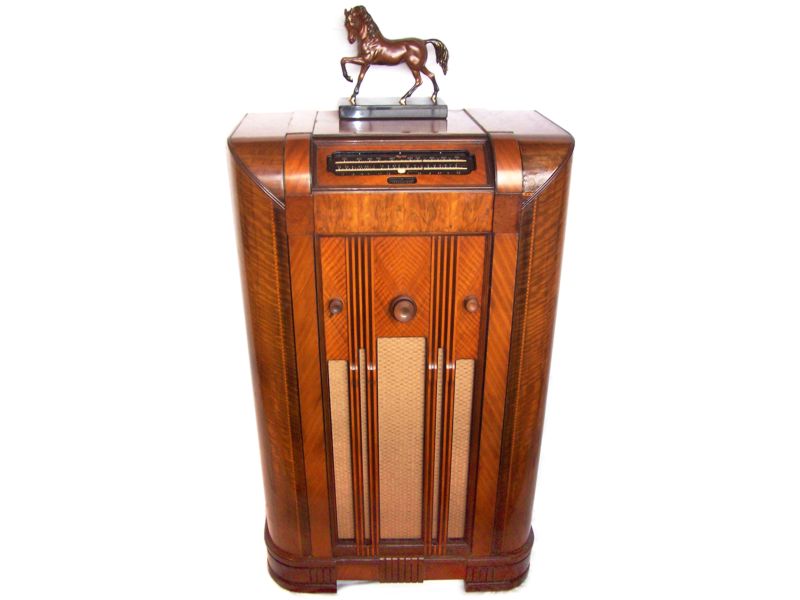

Rogers Majestic Queen Mary 1936 13-Tube Console Radio 6M1331

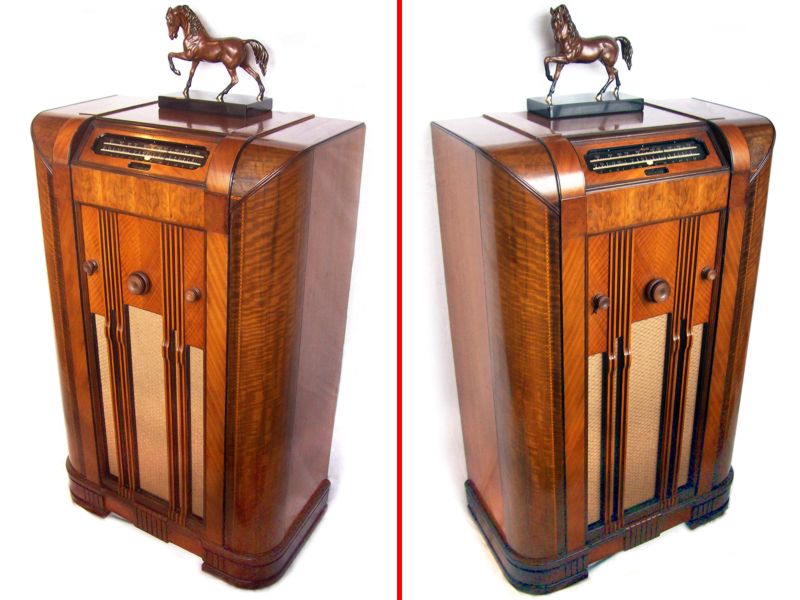

Gorgeous Early Short-Wave Console Radio, 6M1331 "Queen Mary" made by Rogers Majestic in 1936, with 1:720 Tuning Dial and 15" Field Coil Speaker



In a Nutshell
Dial Split in 720 parts, 2x6F6 Push-Pull 20W Audio, 13 Tubes, Huge 15" Magnavox Field Coil Speaker, you want more?
- And you get more - I just bought another one that I am going to restore - Imagine: 26 tubes and two huge 15" Speakers!

Introduction:

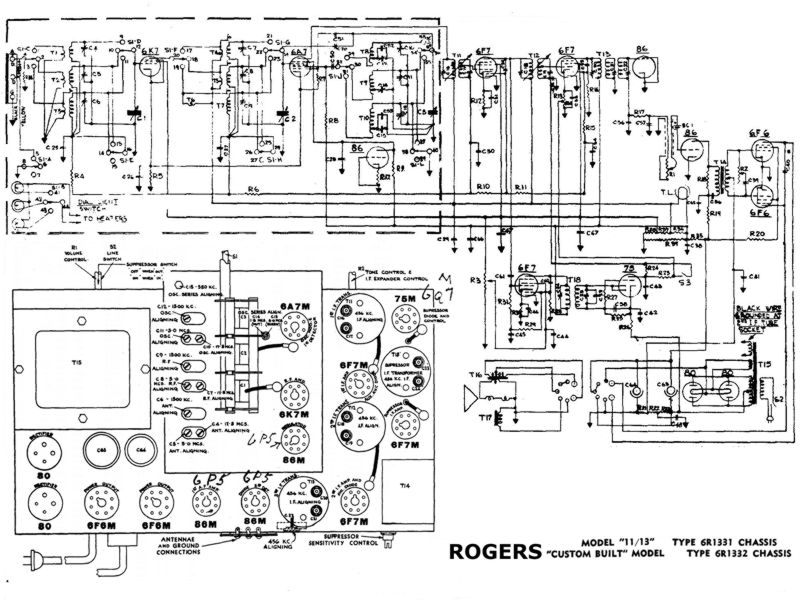

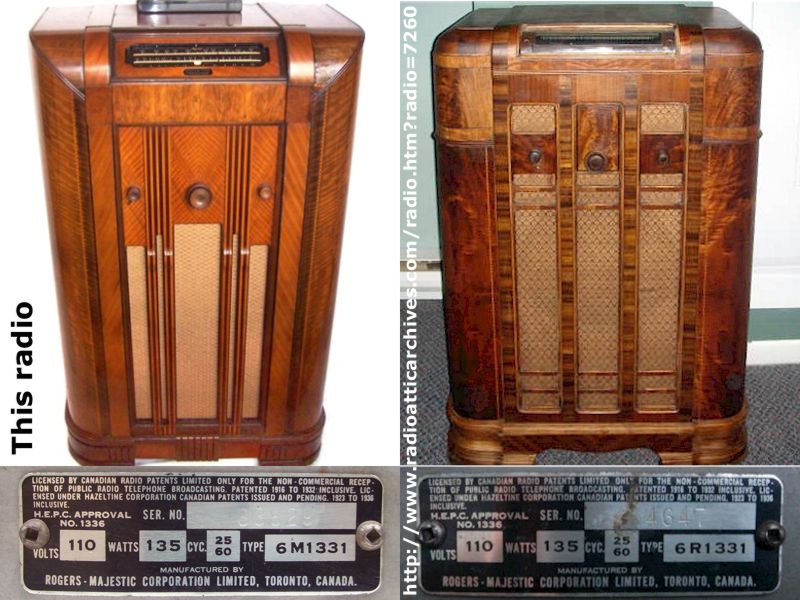

With these two radios (I just bought a second one, still to be restored) I continue the restoration of impressive 1930's Canadian console radios made by DeForest Crosley (8D991, 9D791, 9D991) and Rogers Majestic (12-126, 7M931). This time DeForest Crosley seems to not have come out with their own model, but instead Rogers Majestic produced two radios with the same chassis, but different cabinets (pict.34), Rogers "11-13" "Custom-Built" and Majestic "Queen Mary", with chassis 6R1331 and 6M1331 (ref.s 1,2), respectively. The first digit of the chassis number stands for the production year (1936), the second for the number of tubes (13). In contrast to many of these 1930's radios that have very beautiful multi-colored glass dials, the dial of this radio is made from plastic and rather plain. Even the lens was from plastic. Since it was broken I replaced it with a glass lens. The brand mark in pict.31, found on the bottom of the cabinet resembles the ones found on DeForest Crosley radios (e.g. the EARL, also on sale), and may be interpreted as K for Knechtel plus date Aug.6, 1936 (the other Queen Mary has the stamp K081736, standing for Aug.17, 1936). This radio definitely excels in its technical specifications:

     • powerful 20W push-pull amplifier with two 6F6 tubes

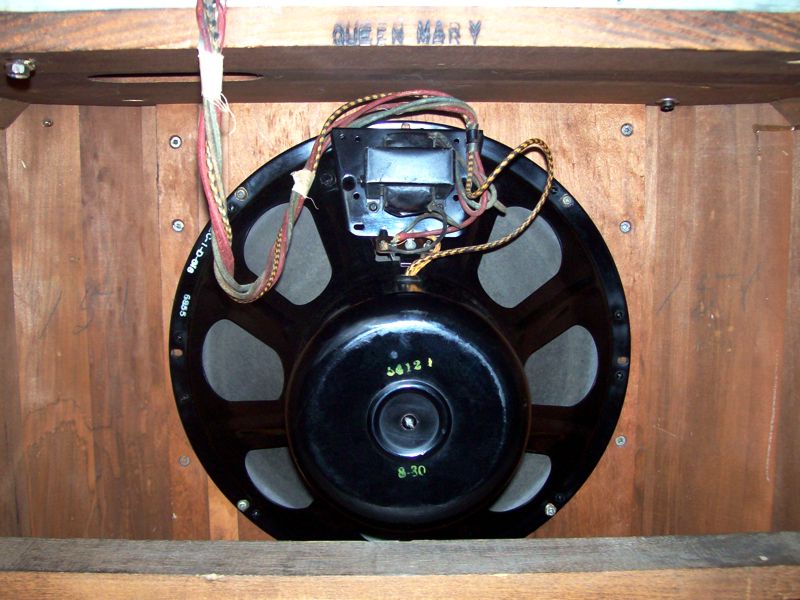

     • large 15" Magnavox (model 5412) field coil speaker
     • variable bandwidth IF amplifier (noise suppressor)
     • powerful power supply with two 80 rectifiers
     • extremely spread-apart vernier dial
     • beam-of-light short-wave loupe with 1 mark equalling 1/720th part of full scale
     • 24V bulb tuning help, dimming on station

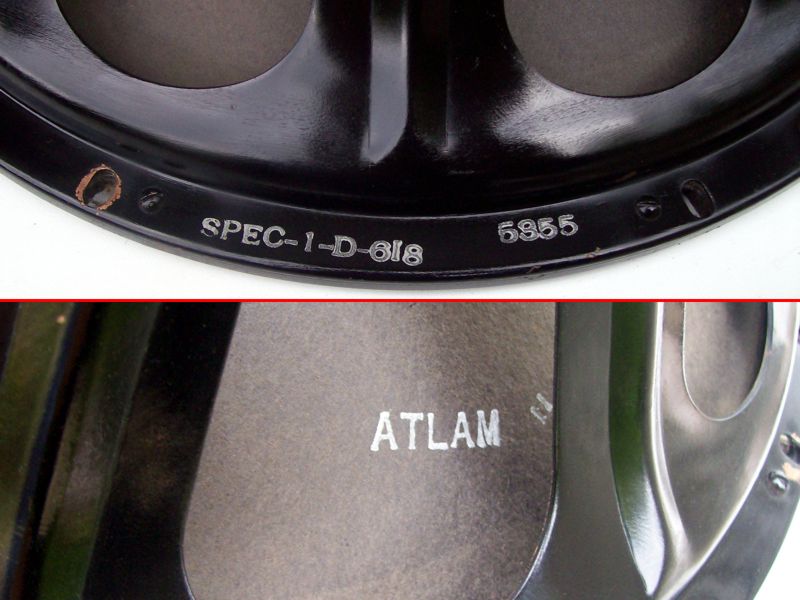

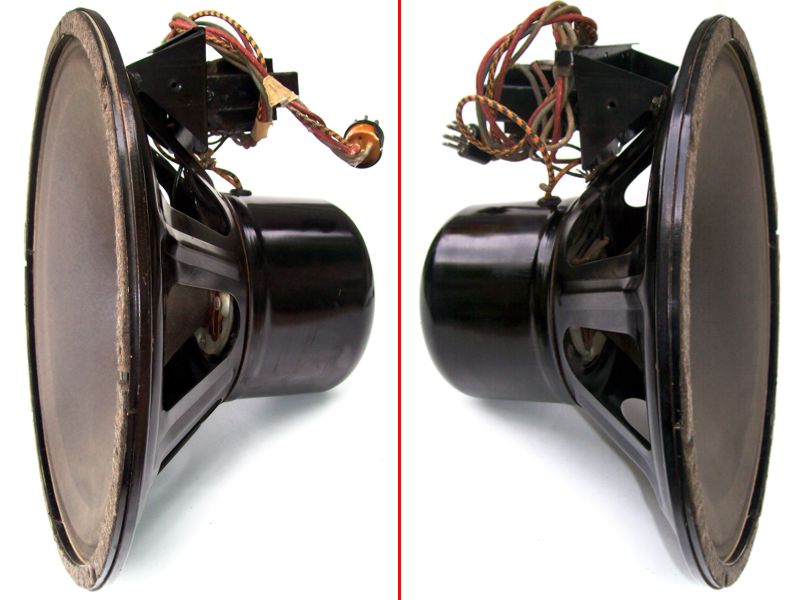

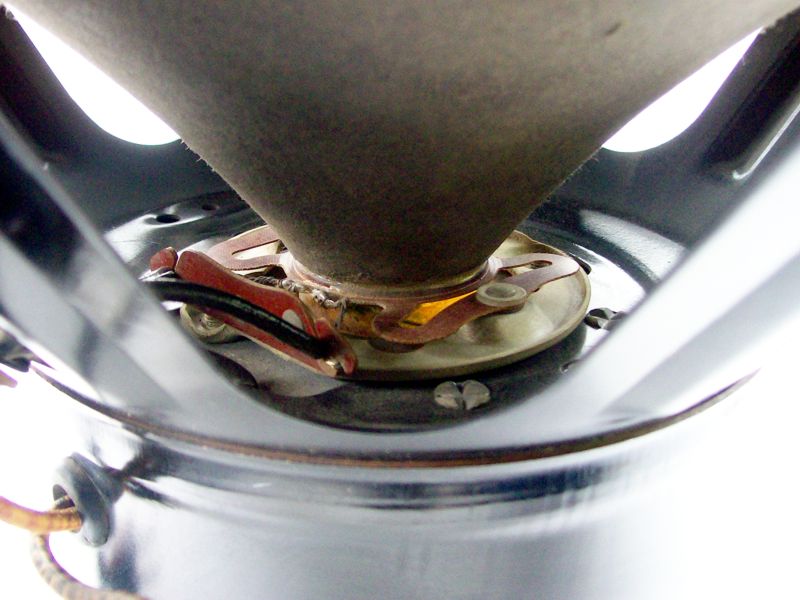

The (field coil) speaker is from before 1936, and looks like new. It features an early exponential cone cross section, enhancing treble in such a big 15" cone. The radio features a phono input allowing also to connect other devices like CD- and mp3 players.

For the techies only:

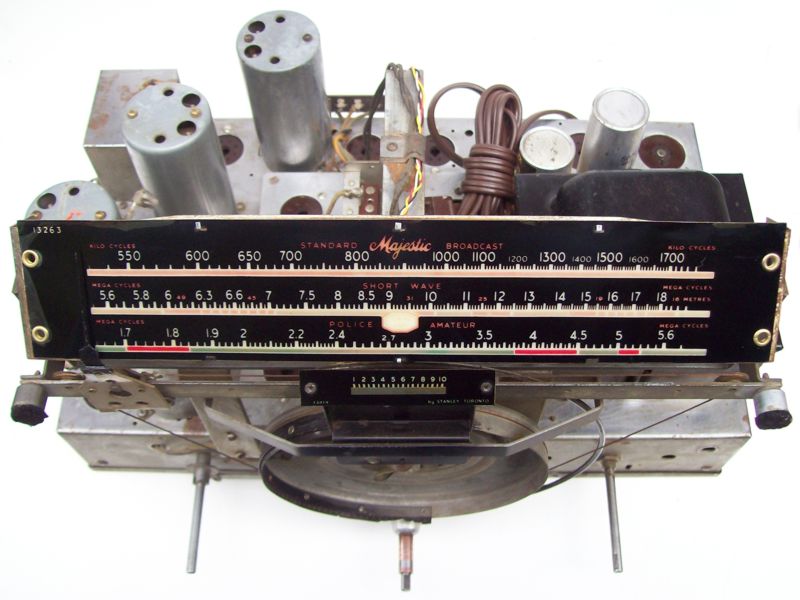

Some historical remarks and technical details for tubes and bias cells, are under techies for the Rogers console 7M931 (ref.3), that I sold recently. A word about the beam-of light short-wave loupe of this radio (pict.33): A short-wave loupe is used to find stations on the densily populated short-wave band. 60 transparent film marks are distributed on a half circle fixed on the shaft of the main tuning capacitor. A bulb projects and magnifies part of this film onto a matt screen with 20 scale divisions, such that the light spot advances by one division, when the tuning capacitor is rotated by 1/4 degree. 12 revolutions of the coarse tuning knob, or 72 revolutions of the fine tuning knob are necessary to rotate the tuning capacitor over its full range of 180 degrees, so effectively splitting this range into 720 divisions. This is comparable with the red "split second" dial pointer of Zenith's famous black dial radios, where one second corresponds to 1/6 degree rotation of the tuning capacitor.

Additional information:
   ref. 1.    http://www.radiomuseum.org/r/rogerstube_majestic_queen_mary_ch_6m.html
   ref. 2     http://www.radioatticarchives.com/radio.htm?radio=7260
   ref. 3     http://www.greenhillsgf.com/IndexOwn_RogersMajestic_7M931.htm


About my radio:

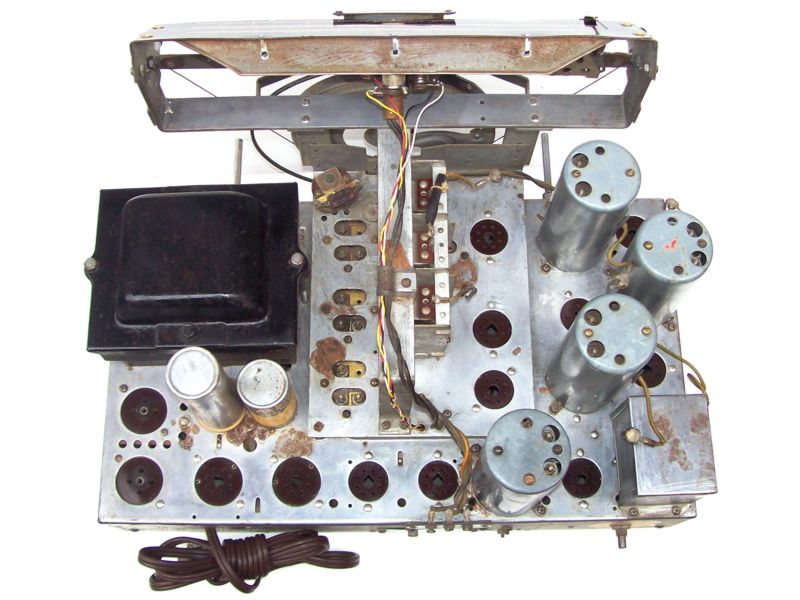

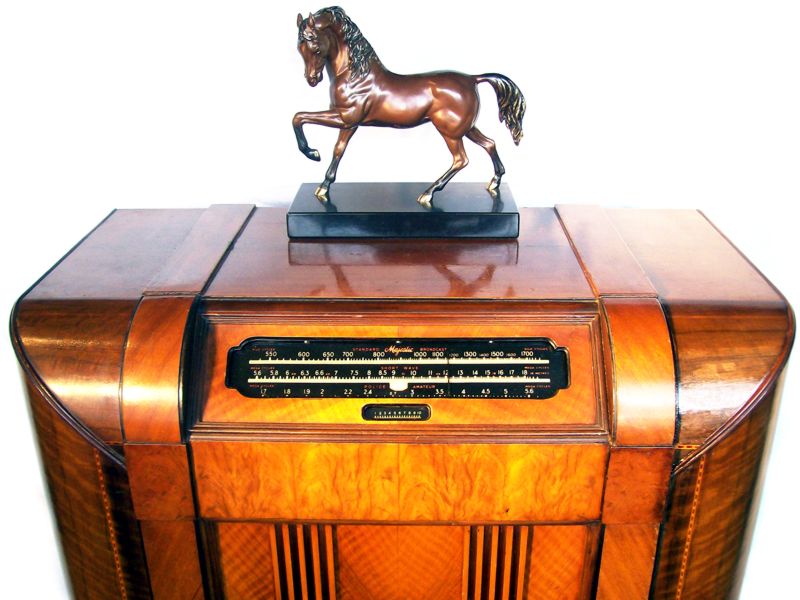

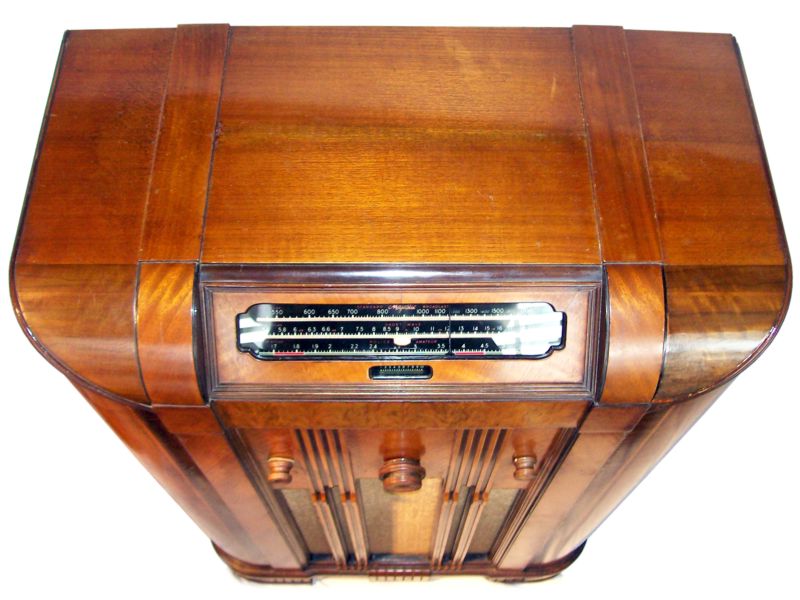

The radio has not been refinished, only having minor repair work on its upper right corner (pict.6). The radio retains all four of its original wooden knobs. The dial plastic cover was broken and milky and has been replaced by regular glass. The radio exhibits 5 of the original sprayshield tubes, including two rare 6F7M tubes. The three 86M are substituted by equivalent 6P5GT, one 6F7M by a 6B8 (swapping pins 4 and 6), and the two push-pull 6F6M have been replaced by a high gain and matched pair of RCA 6F6G.

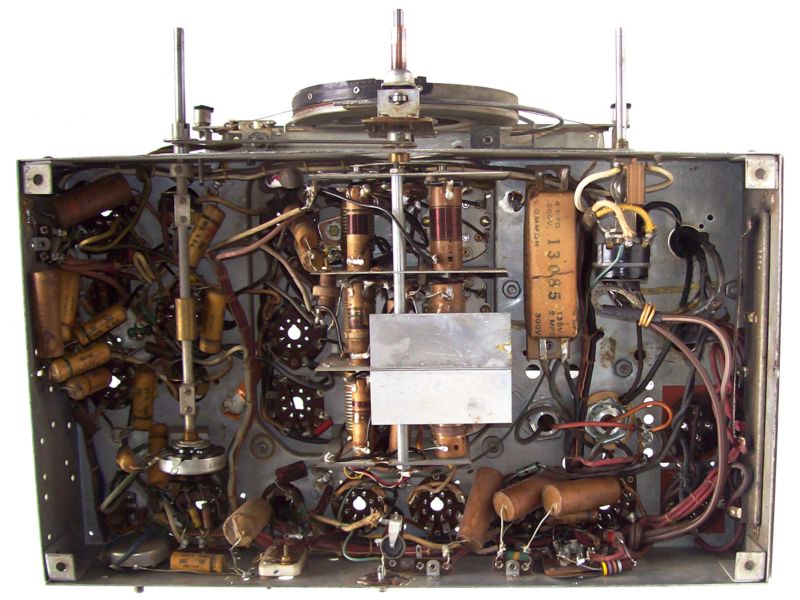

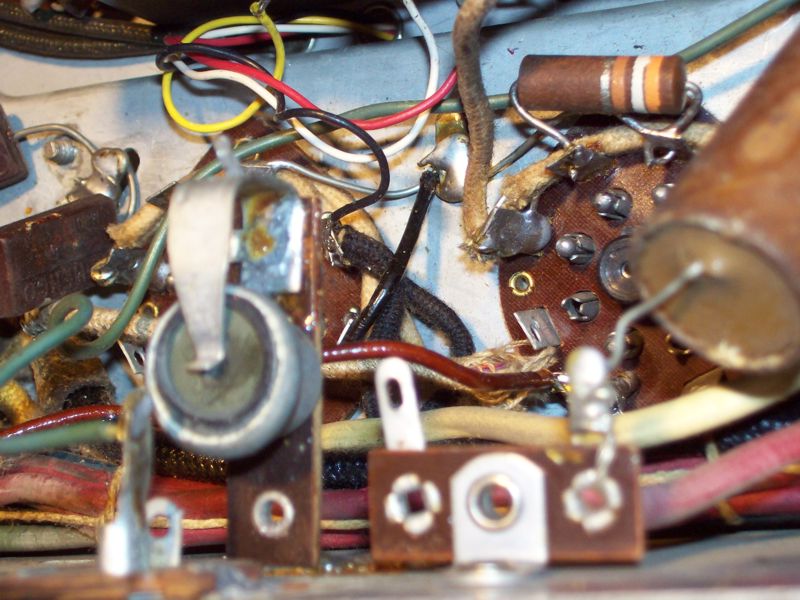

I treated all moving parts with contact spray, replaced the bias cell after an unsucessful try to rejuvenate it, by equipping the corresponding tube with a cathode resistor (pict.20). The radio plays loud and clear on AM/BC and receives SW stations (see 14MB! video by clicking on pict.36). Please understand that here in Chilliwack (in the "valley") we have next to no AM stations left. Please e-mail me (Kris) for any questions, ich spreche Deutsch, je parle Français.
Please note that you have the option to buy a second same radio, which will be restored soon.



Click on Thumbnails to Supersize Pictures
 Your browser is not Javascript-enabled
So, please Skip this Slideshow to see pictures

Here are the specifications:

Technical Description of Item
Manufacturer Rogers Majestic Corp. Ltd., Toronto, Canada
Model Queen Mary, chassis 6M1331
Type 13-tube MW, Police, SW Superheterodyne console radio receiver
Production Year 1936

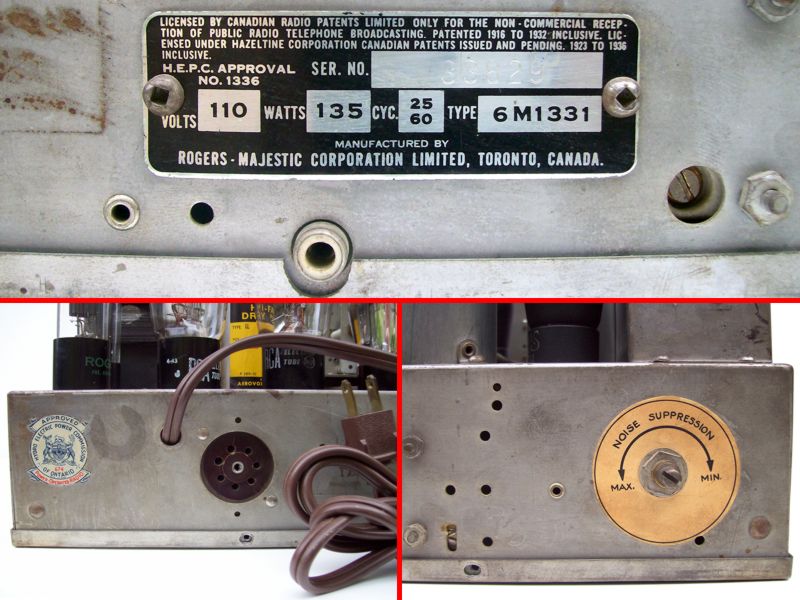

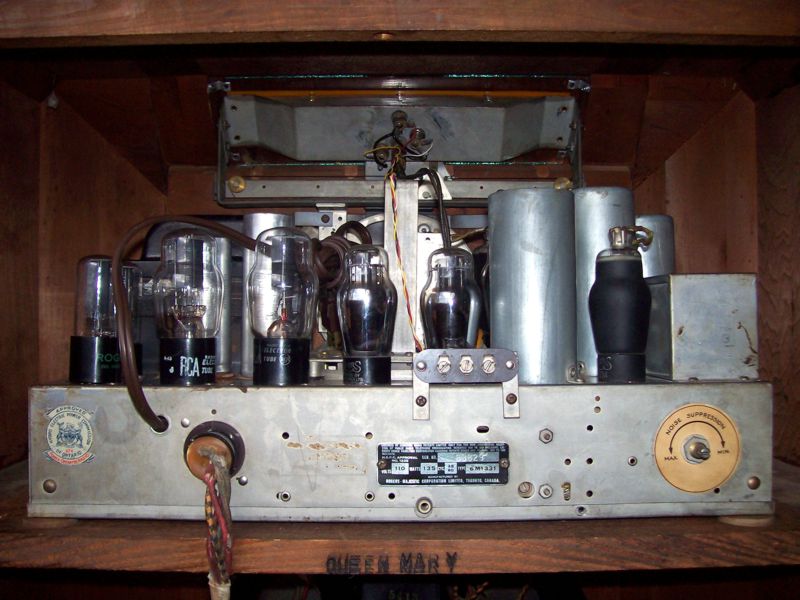

Serial Number chassis 33829
Cabinet multi-tone wood

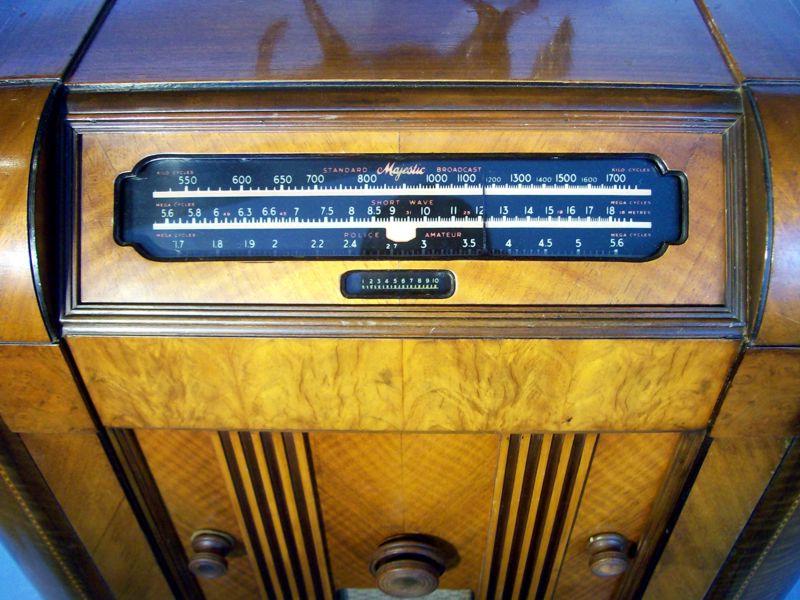

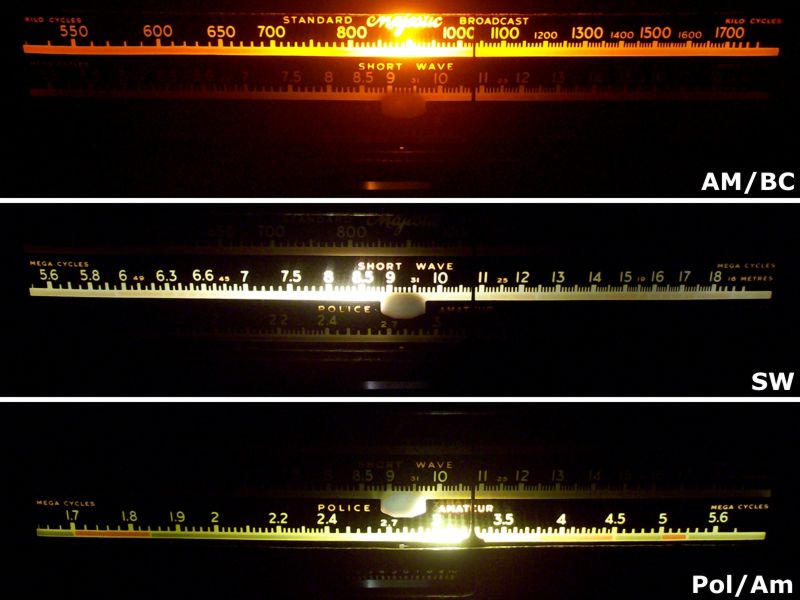

Dial Reverse painted colored plastic with light channels in back
Knobs 5 original wooden knobs
Speaker 15" field coil speaker and push-pull audio transformer
Frequency Range MW/BC 540-1750 kHz, Police 1700-5600 kHz, SW 5.5-18.5 MHz
Controls Volume-band select, coarse and fine tuning, on/off - tone - noise filter

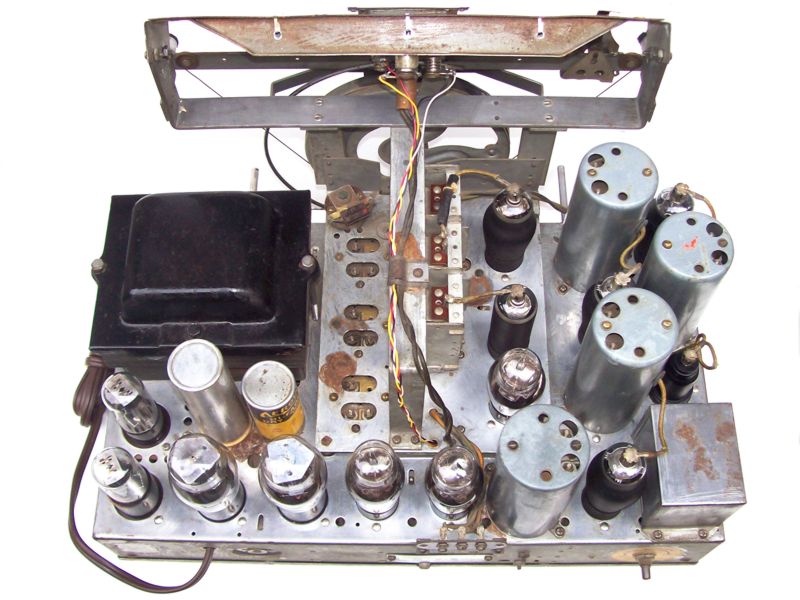

Tube line-up 6K7M, 6A7M, 2x6F7M, 6B8, 75M, 3x6P5, 2x6F6, 2x80, 24V tuning bulb
Size (WxDxH) 26" x 14" x 42"
Weight 108 lbs = 49.3 kg
Comment A heavy Rogers Majestic radio with remarkable technical specifications
