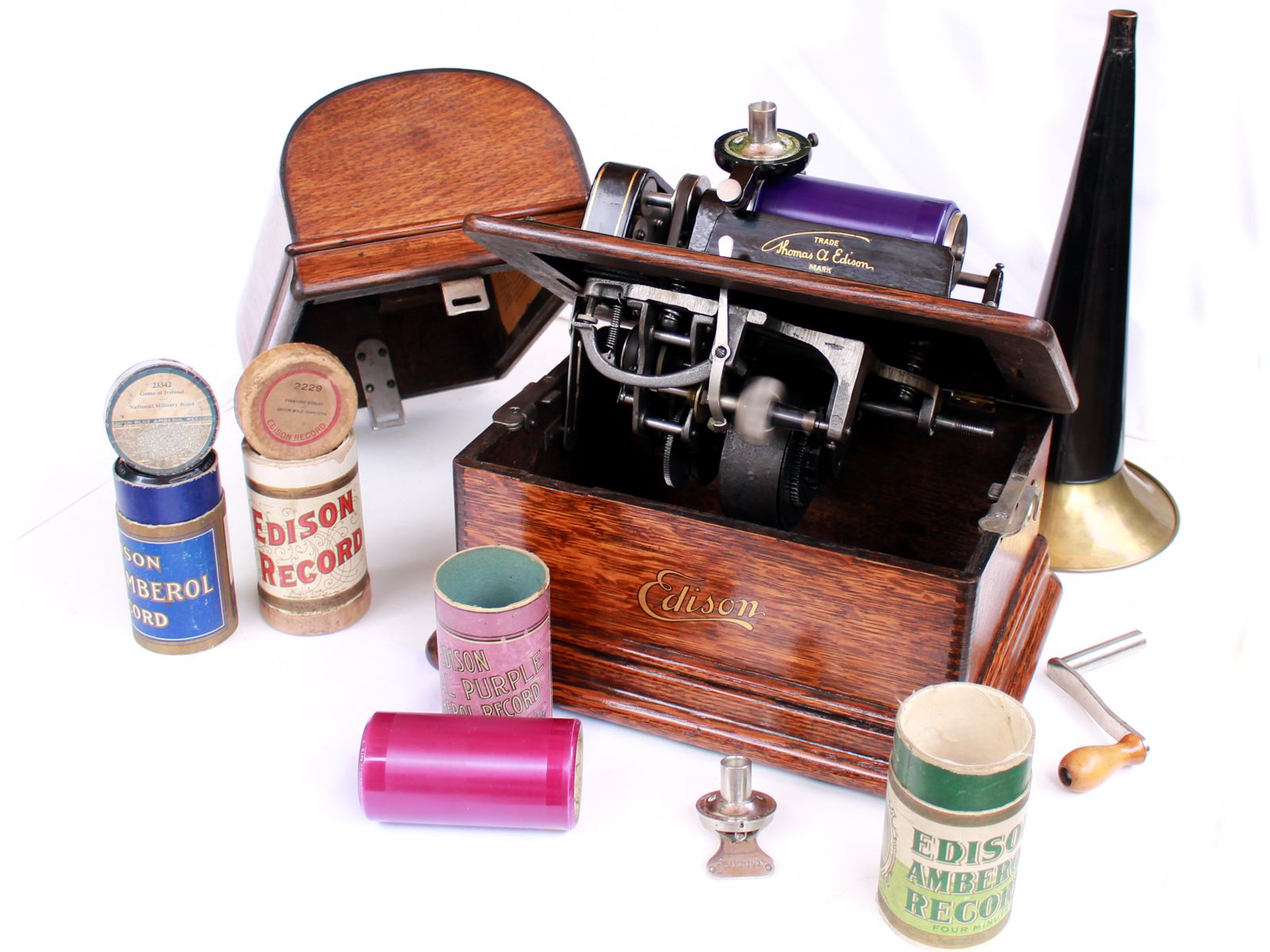

1908 Edison Standard D Combination Phonograph

Plays both, 2-minute cylinders with model C, 4-minute with model H reproducer



In a Nutshell
I let you combine even more: substitute the horn with a bigger one and/or the C plus H reproducers by a combination model O with cygnet carriage

Introduction:

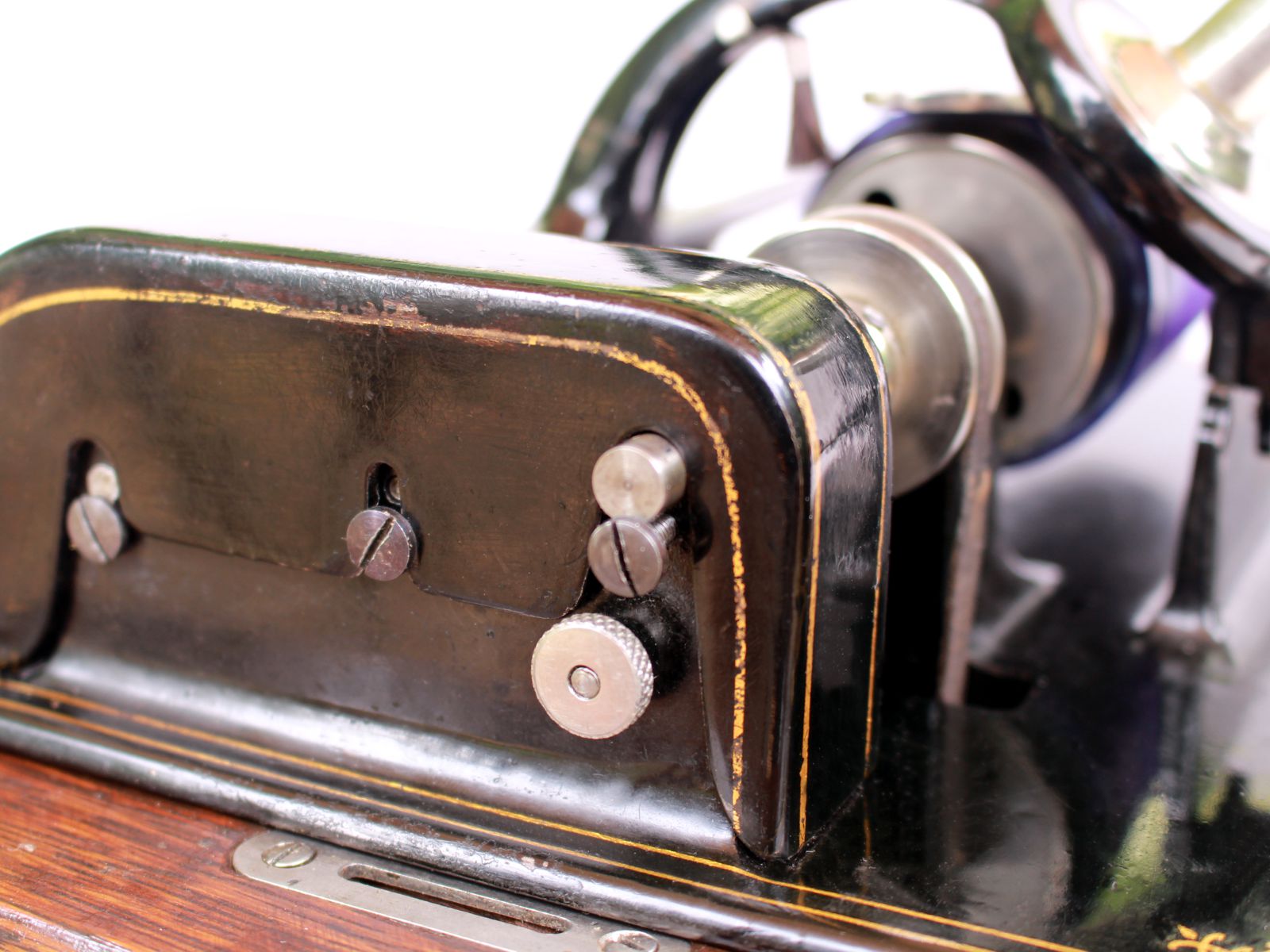

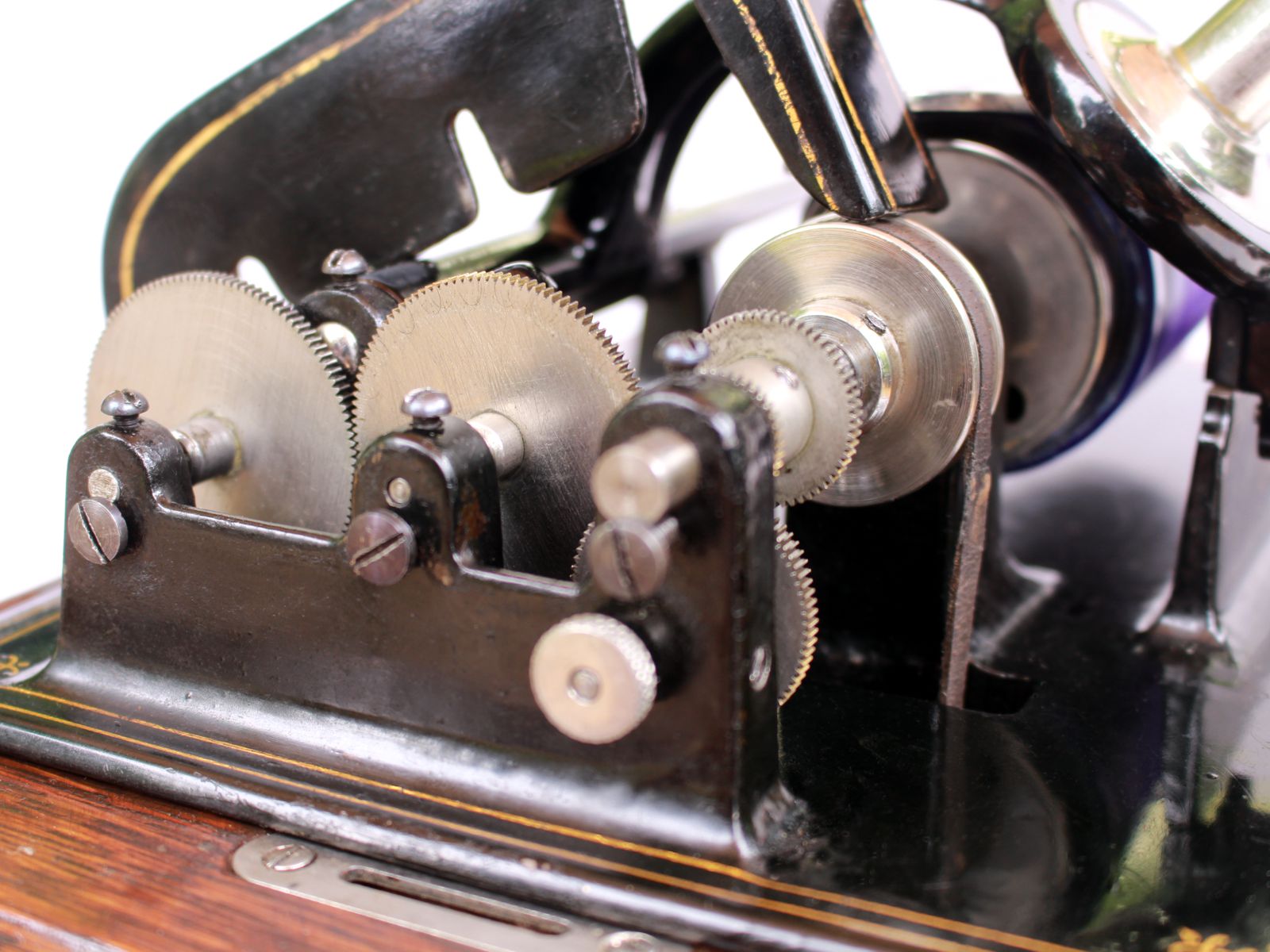

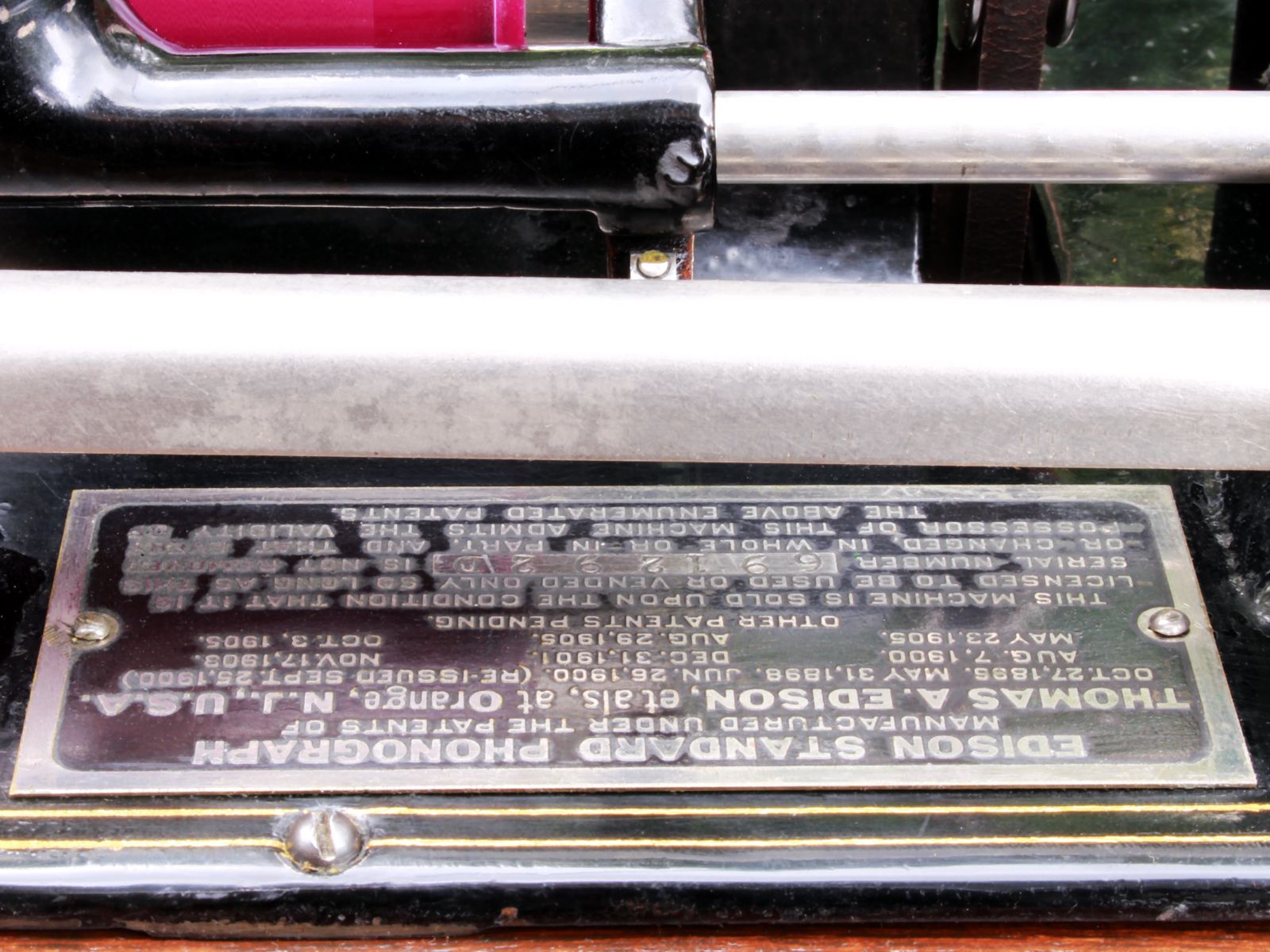

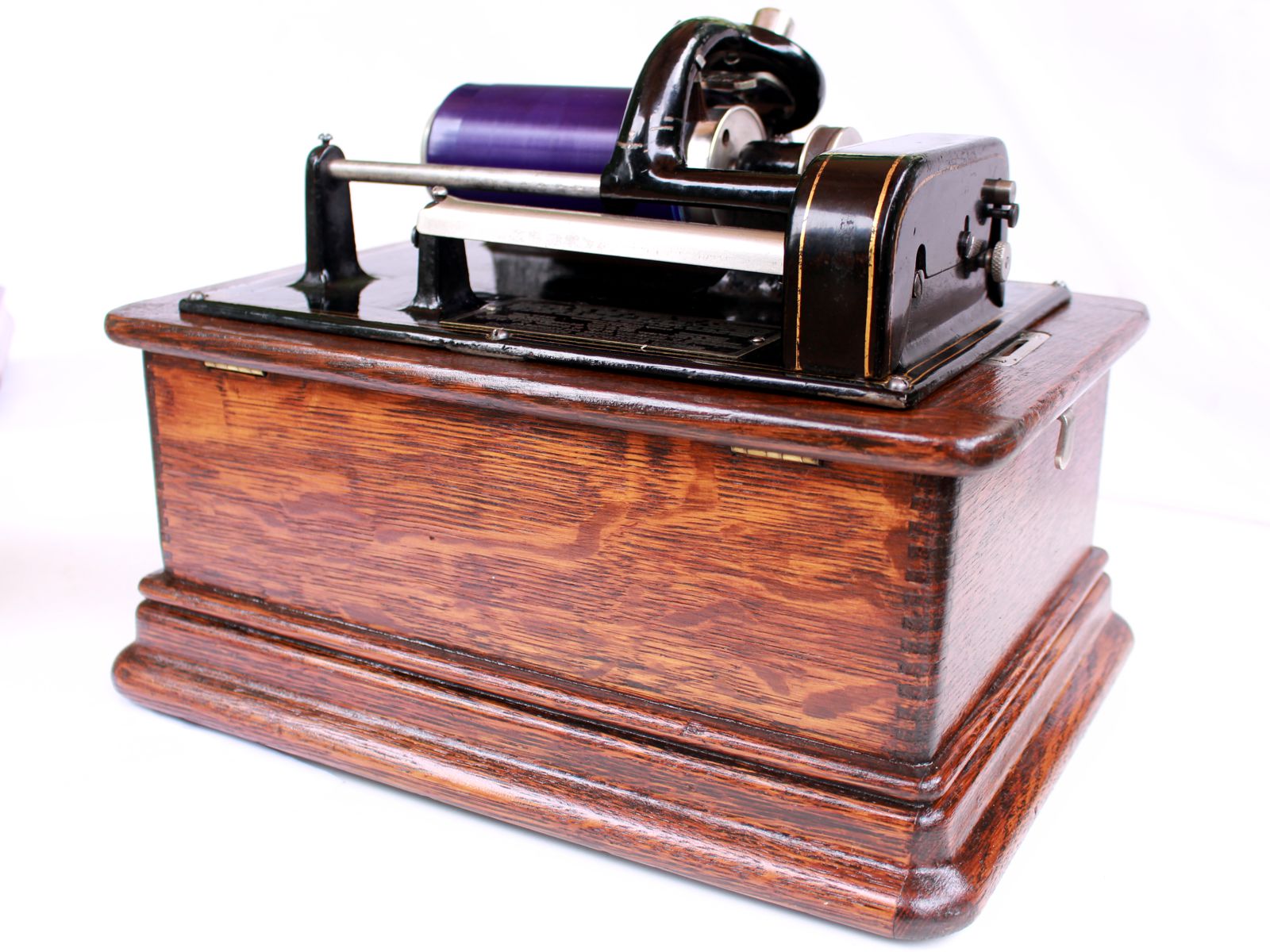

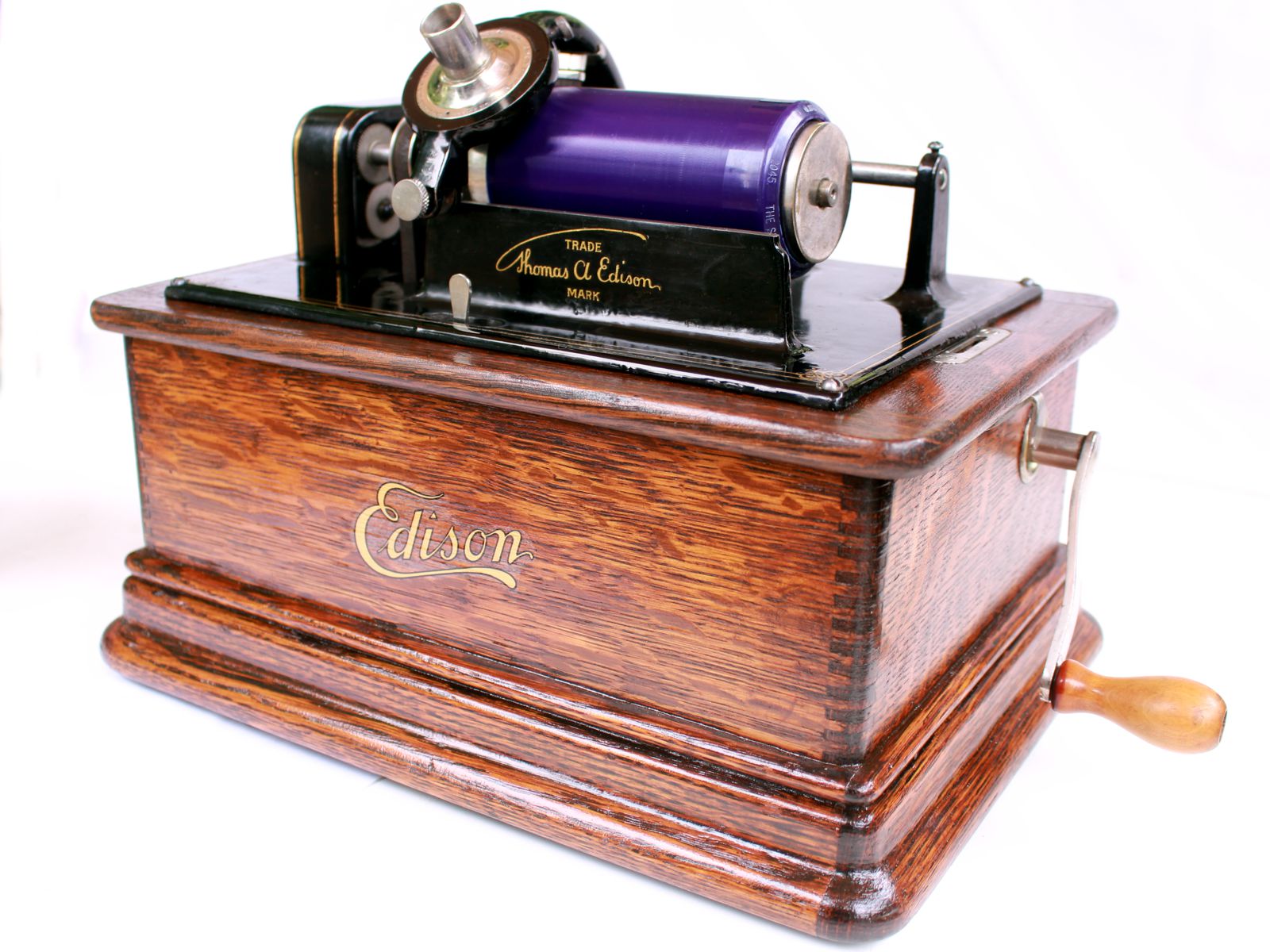

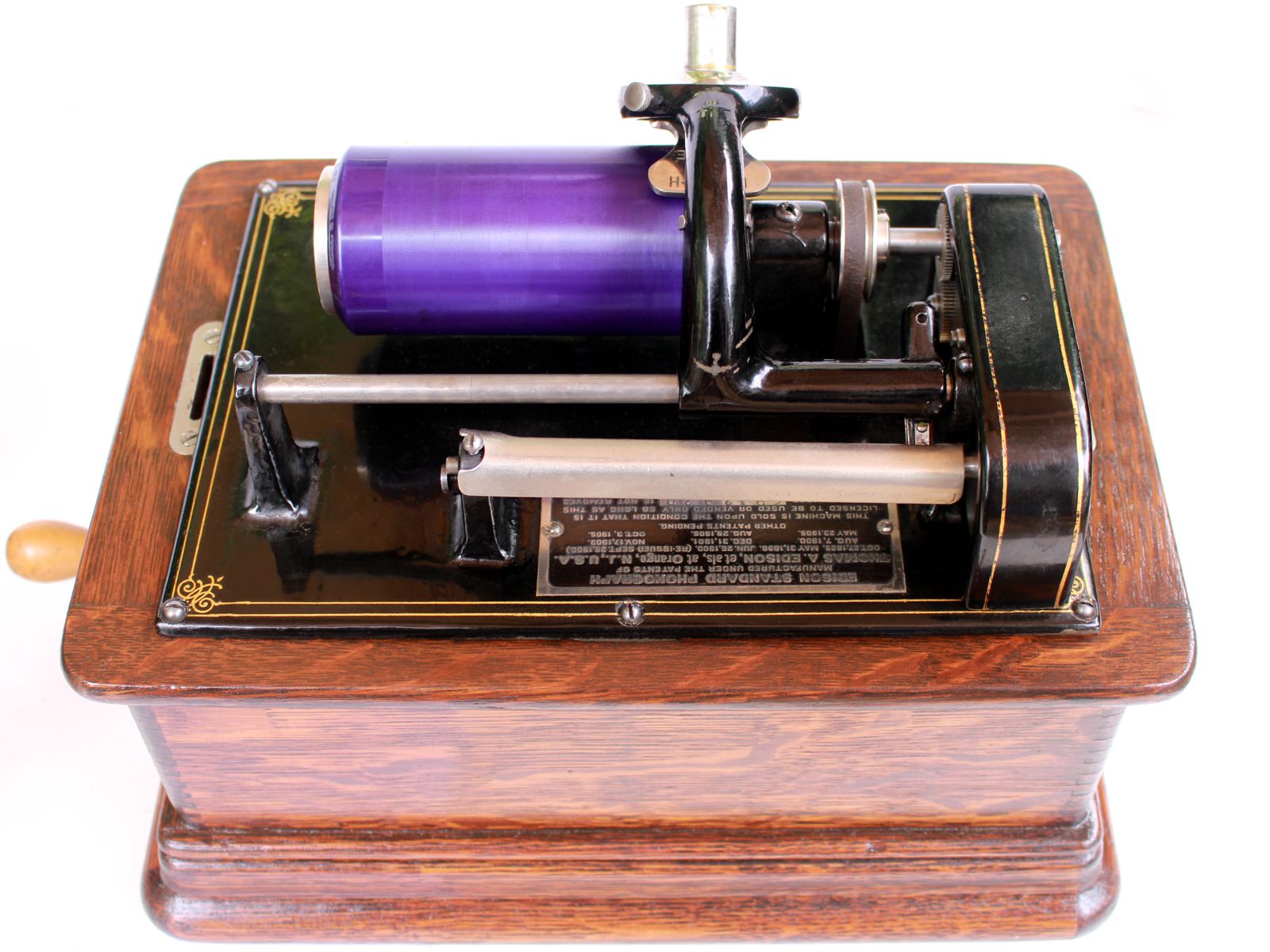

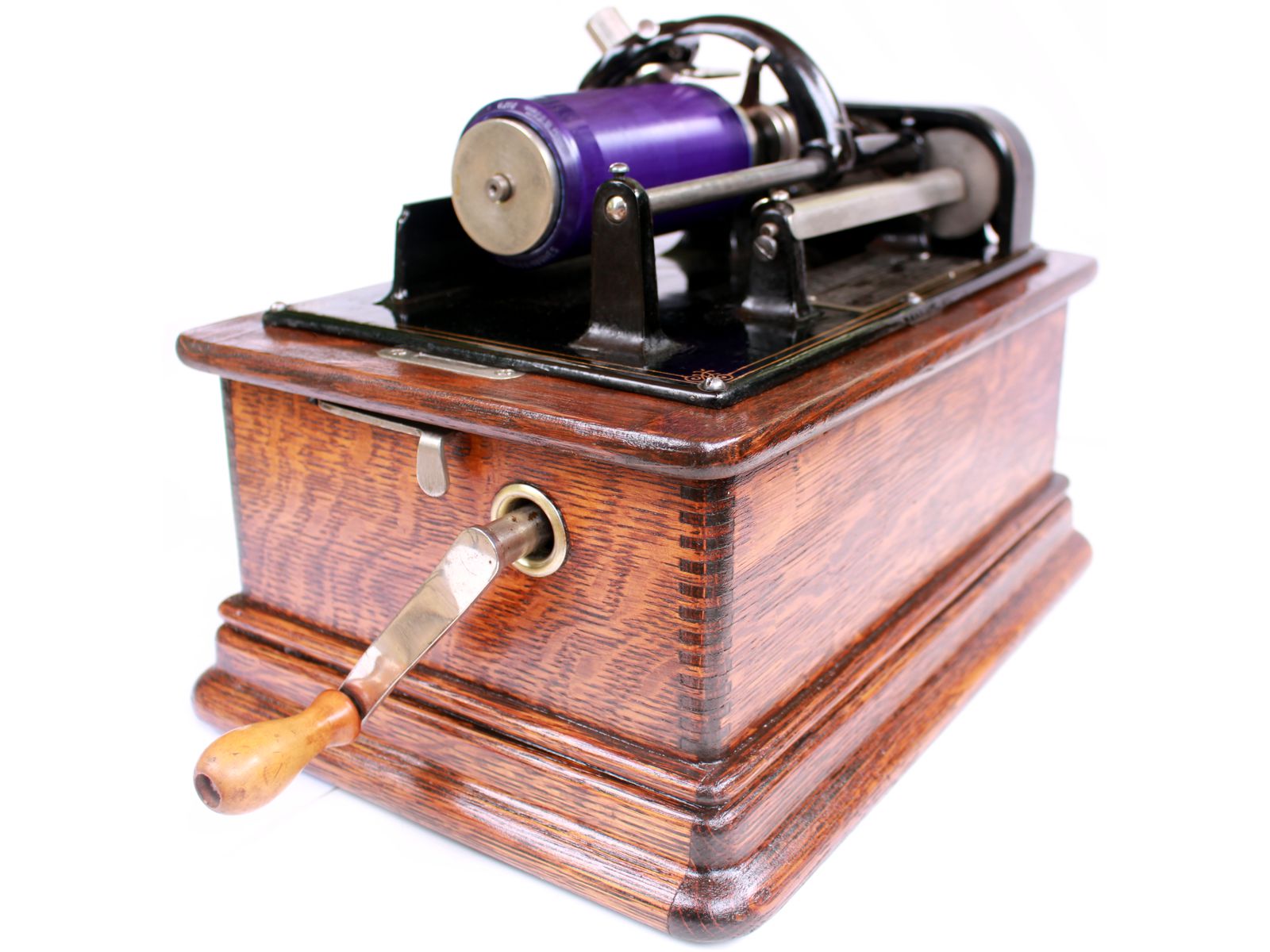

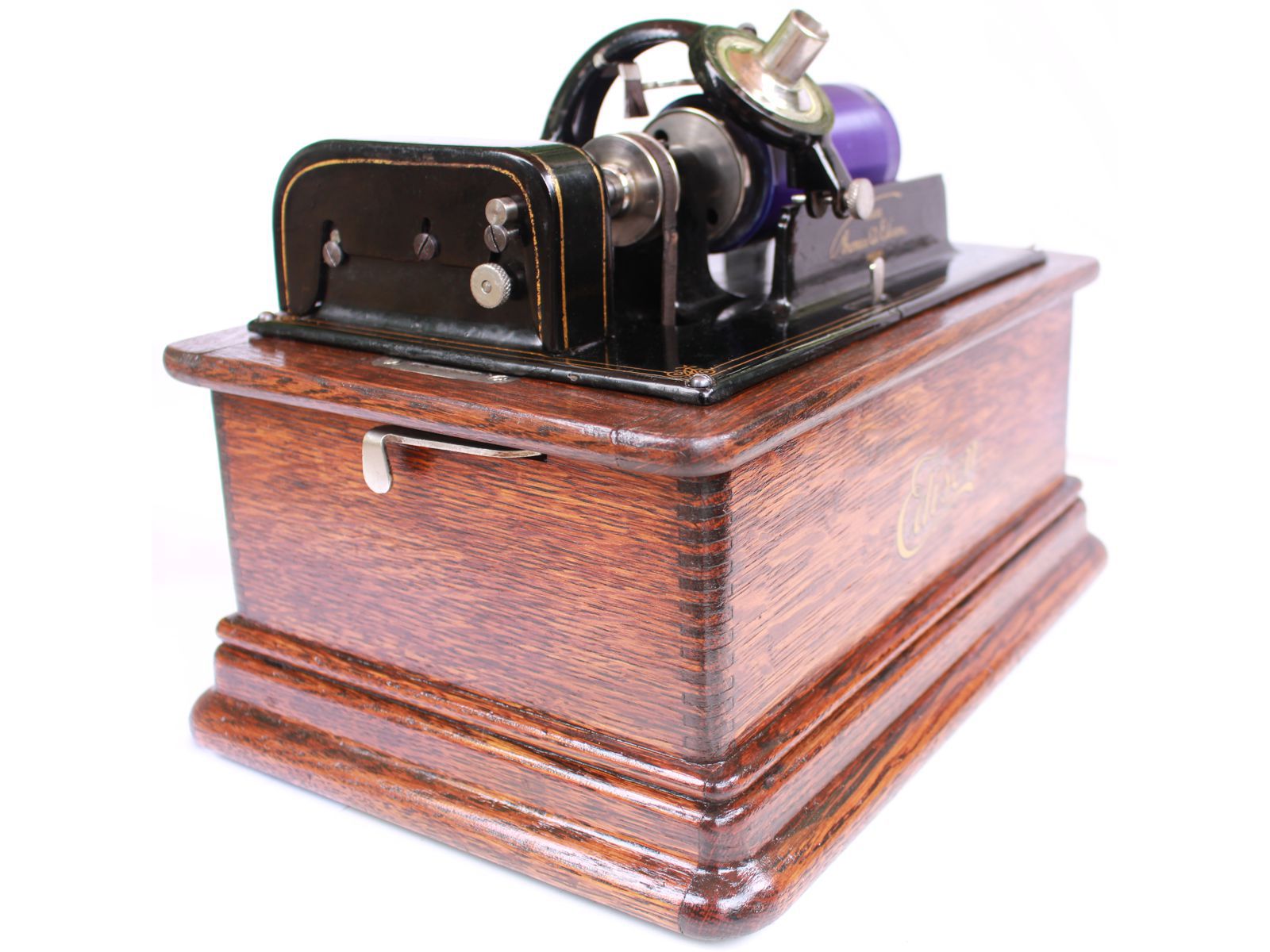

Edison's Standard phonograph was introduced in 1898 and for the next 16 years went through eight modifications. Model D came out in October 1908, at the same time the first 4-minute cylinders hit the market, and was produced for 3 years. This "Combination Standard" played both, 2-minute gold-moulded black wax and 4-minute black wax Amberol cylinders, with the help of a switchable gear cluster and by using two separate reproducers, models C and H for the two speeds. Model H even plays well-behaved 4-minute Blue Amberol celluloid cylinders, introduced in 1912 for the Amberola series. It's an early type D, since the molding corners of the lid are butt-, not finger-jointed, the clips on either end still have 4 (not 3) screws (ref.1), the bed plate misses the later 4 minute/2 minute decal and the type plate is an early type 6 brass plate (ref.2).

Additional information:
   ref. 1.    http://www.antiquephono.org/spotters-guide-edison-standard-phonograph/
   ref. 2.    http://www.antiquephono.org/edison-standard-patent-plate-notes/
   ref. 3.    https://youtu.be/qHkfgrQCgNw


About my phonograph:

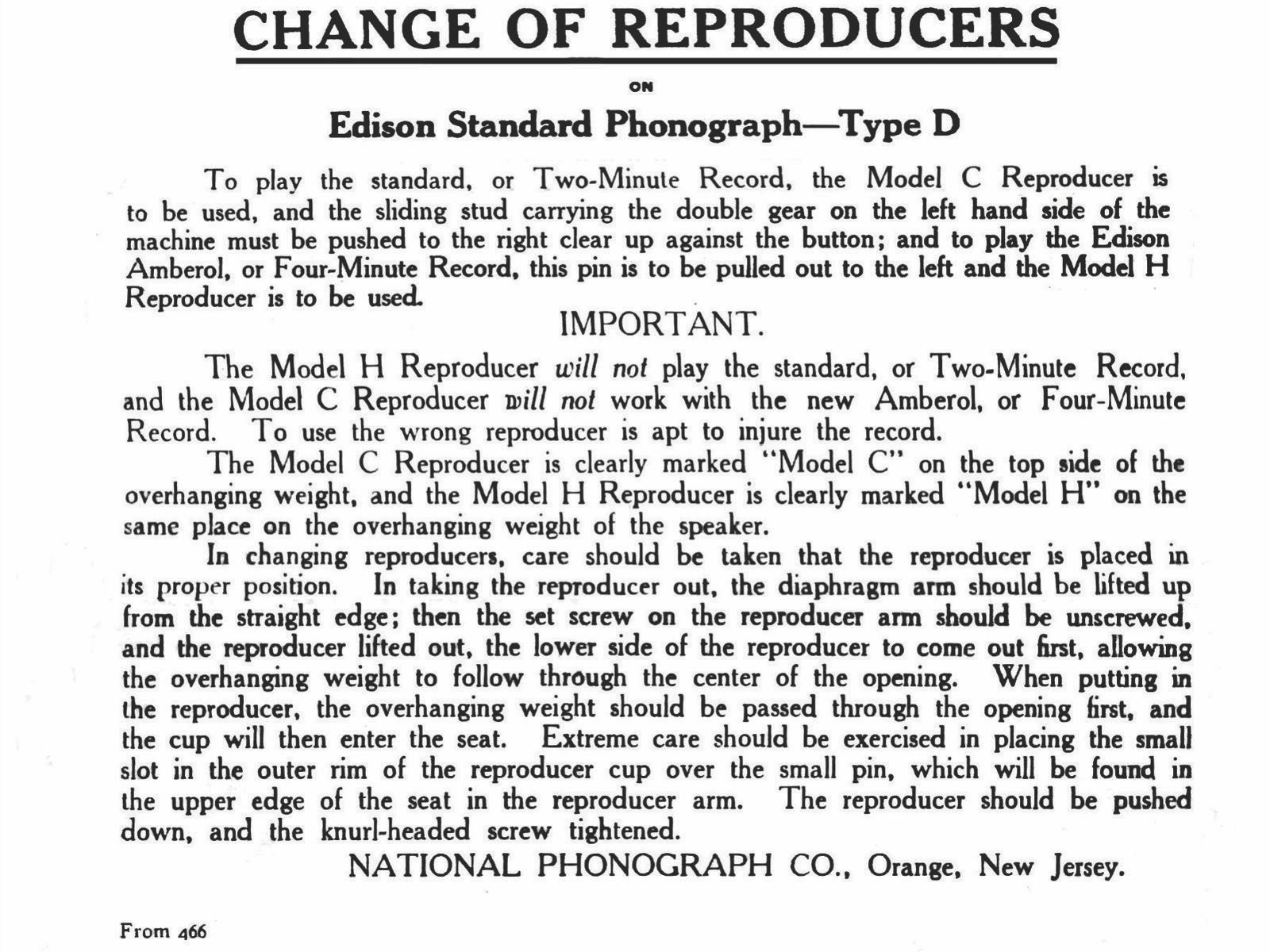

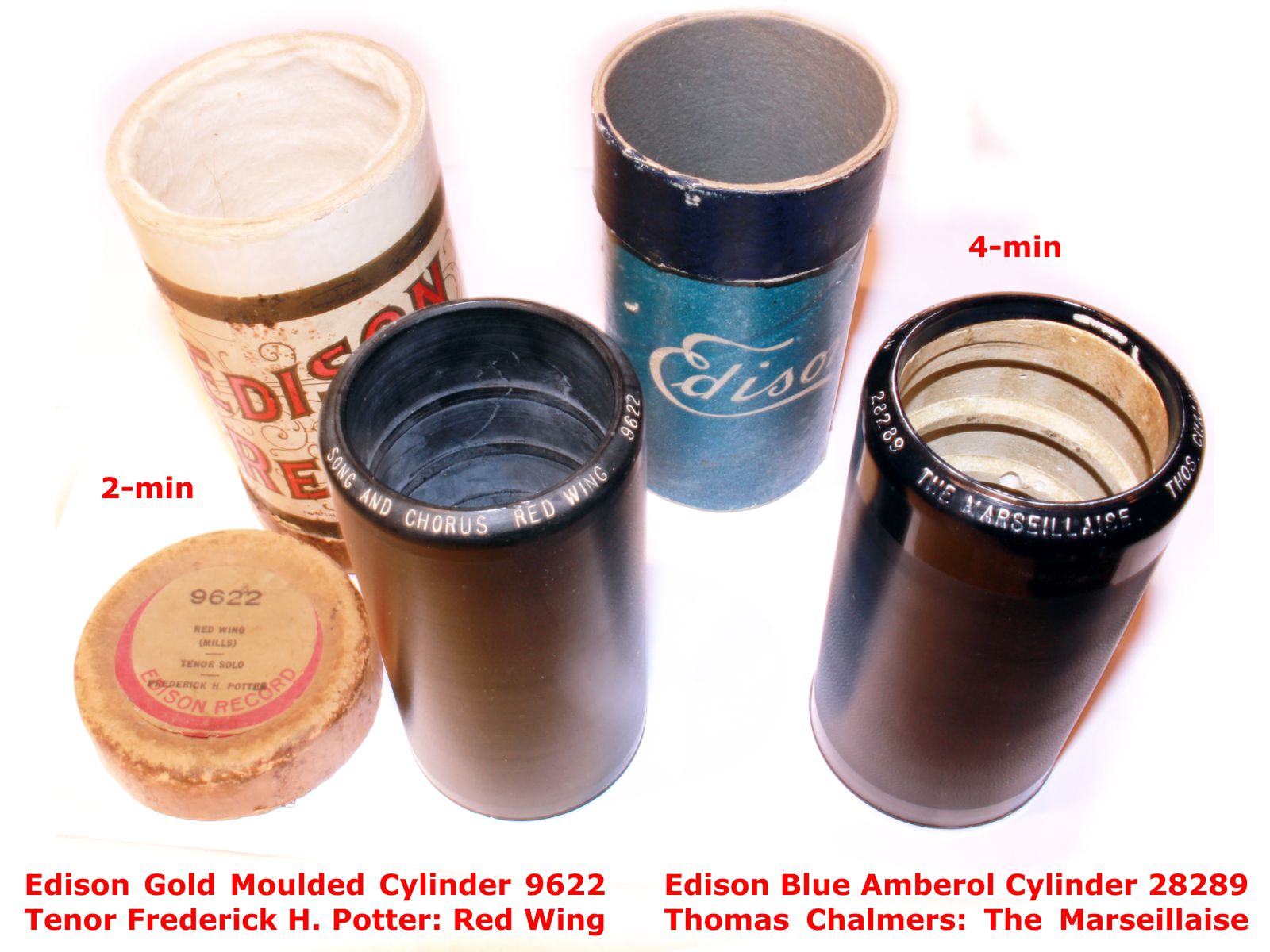

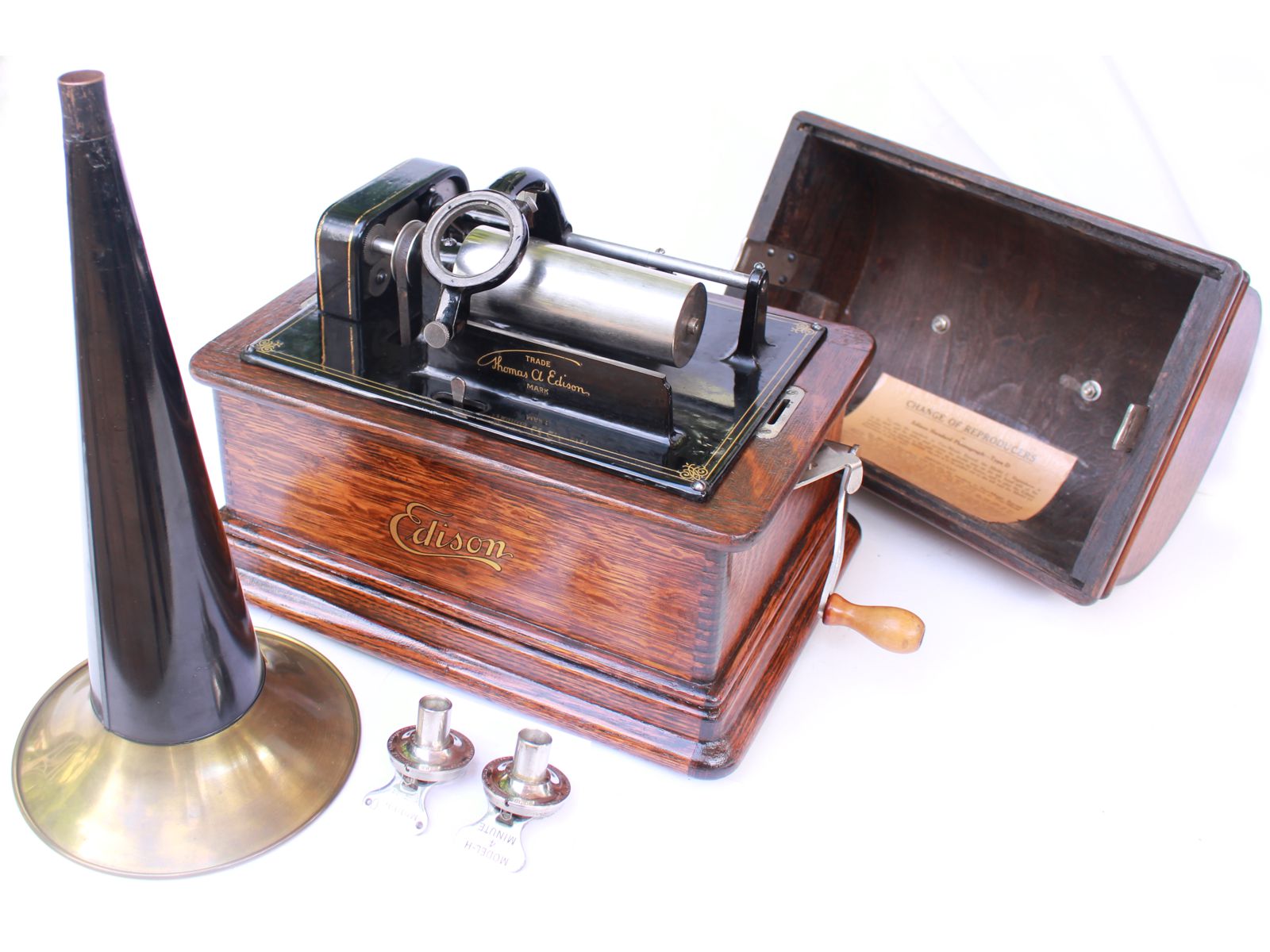

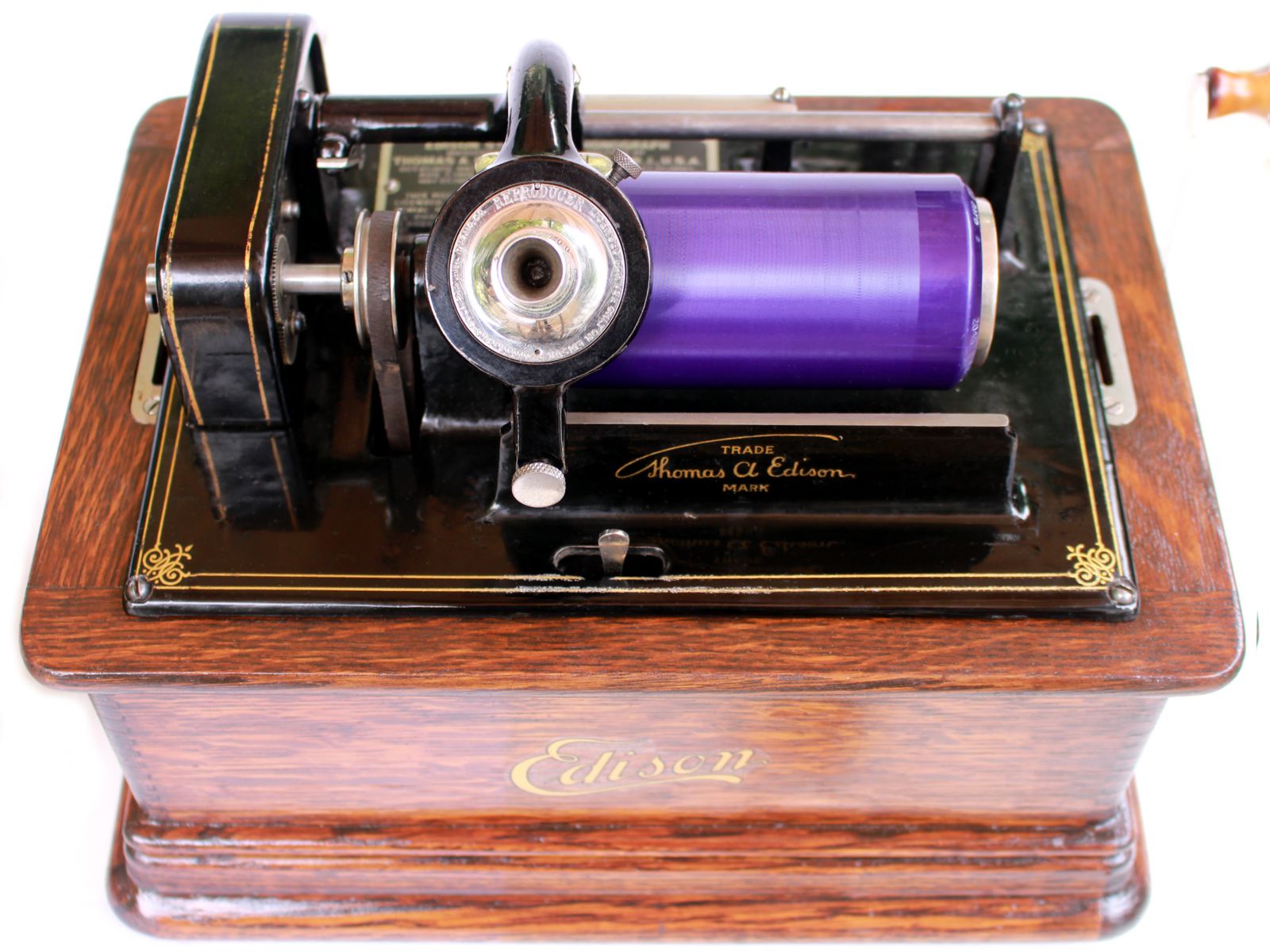

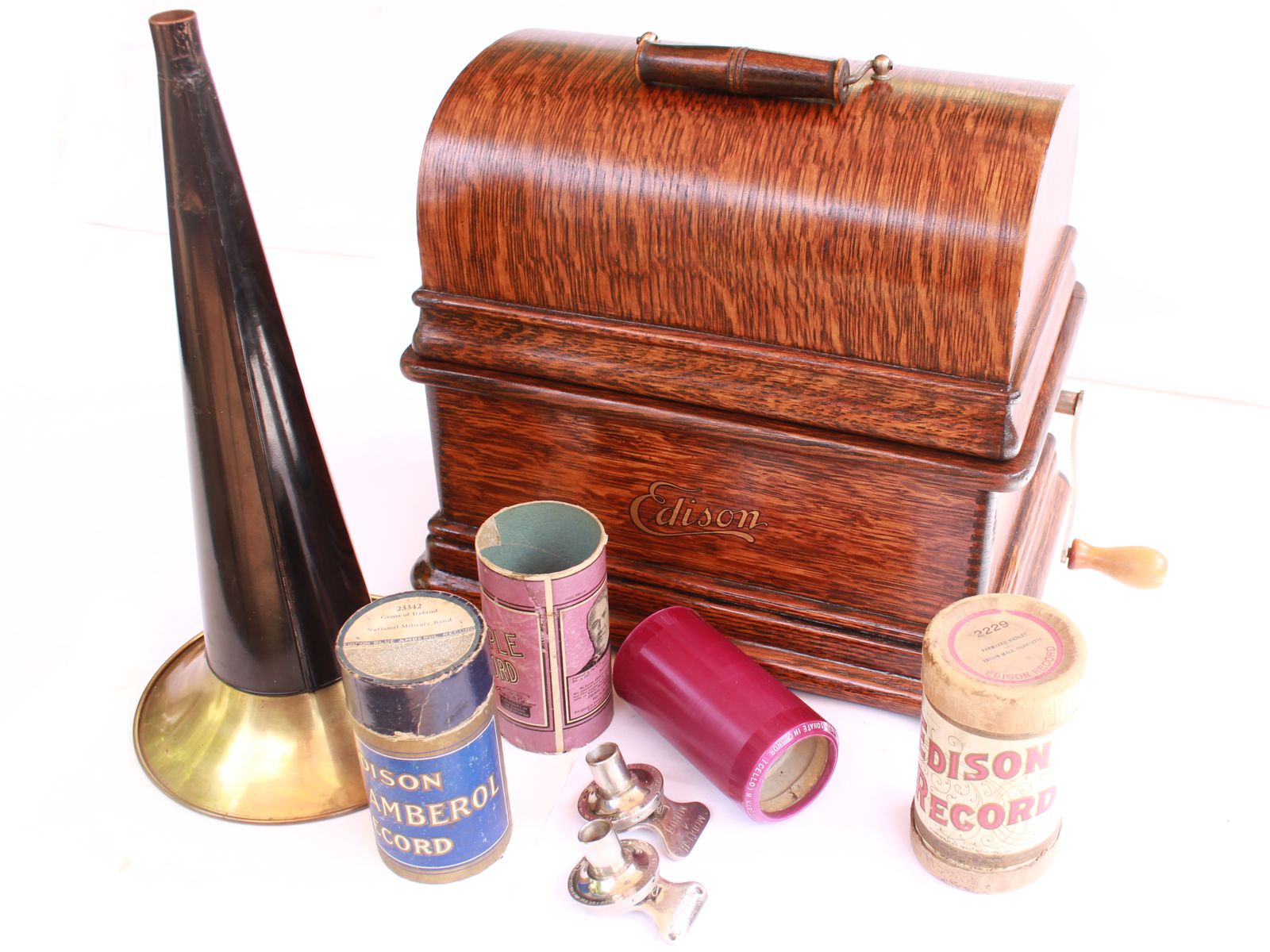

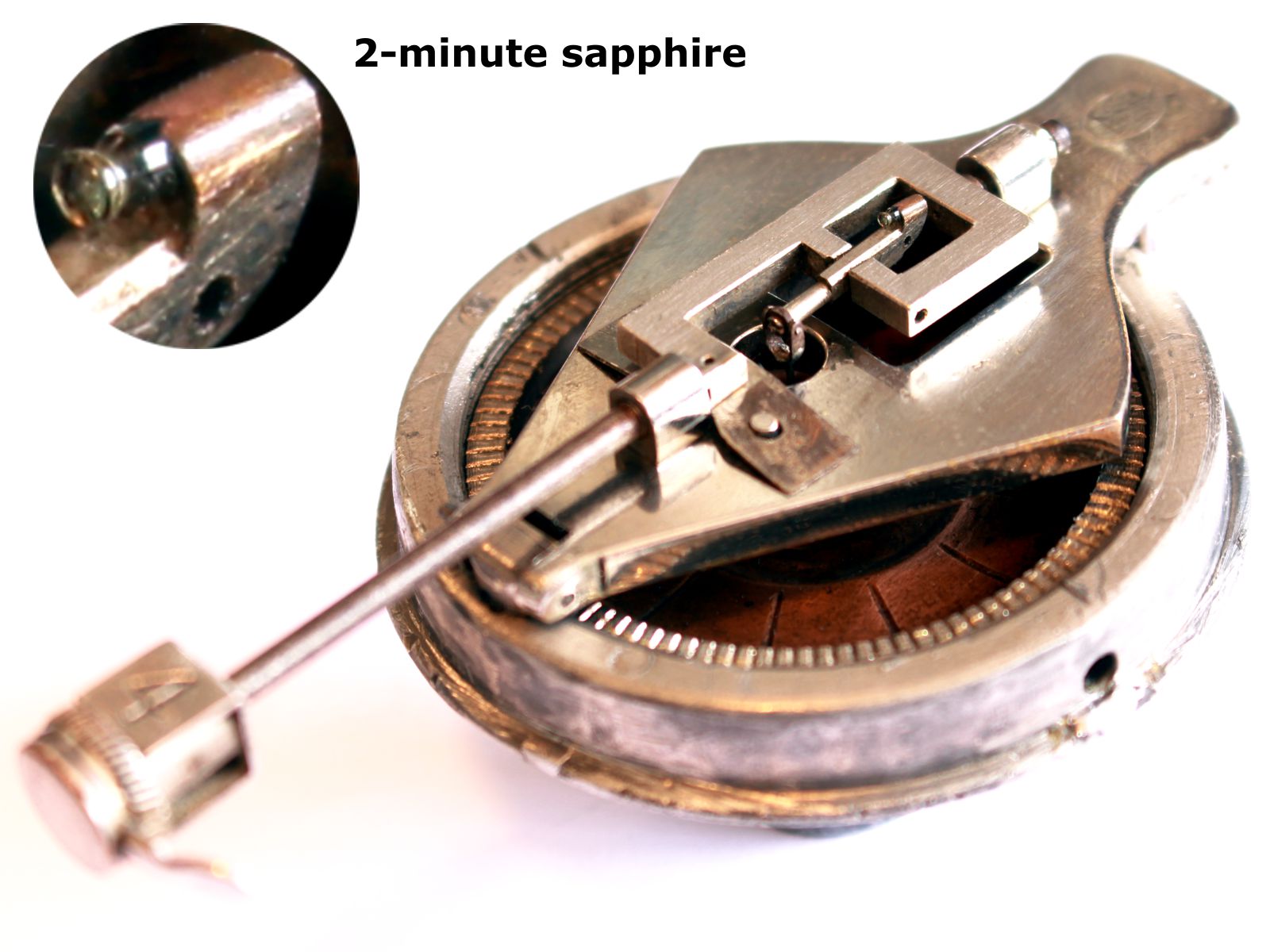

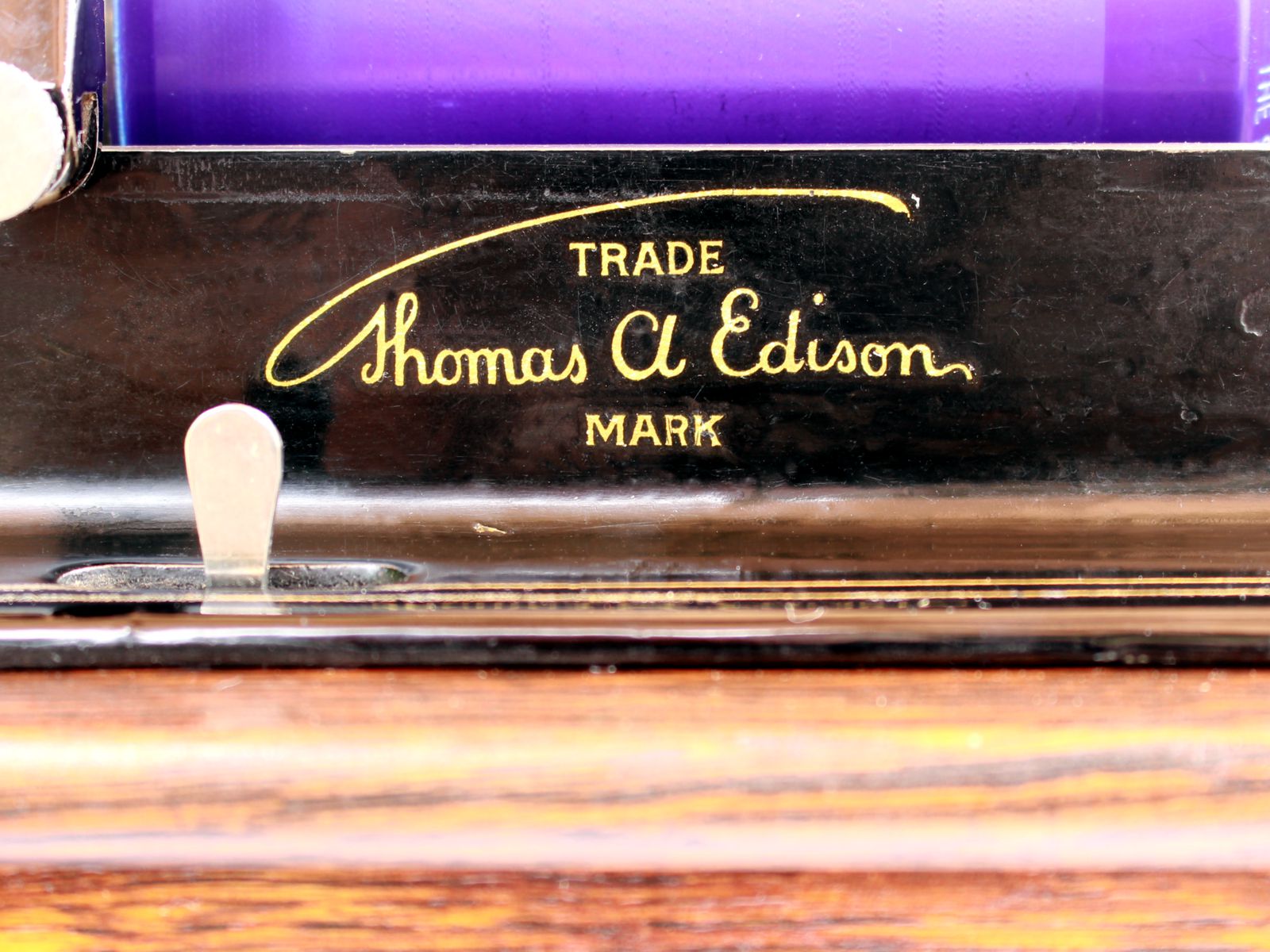

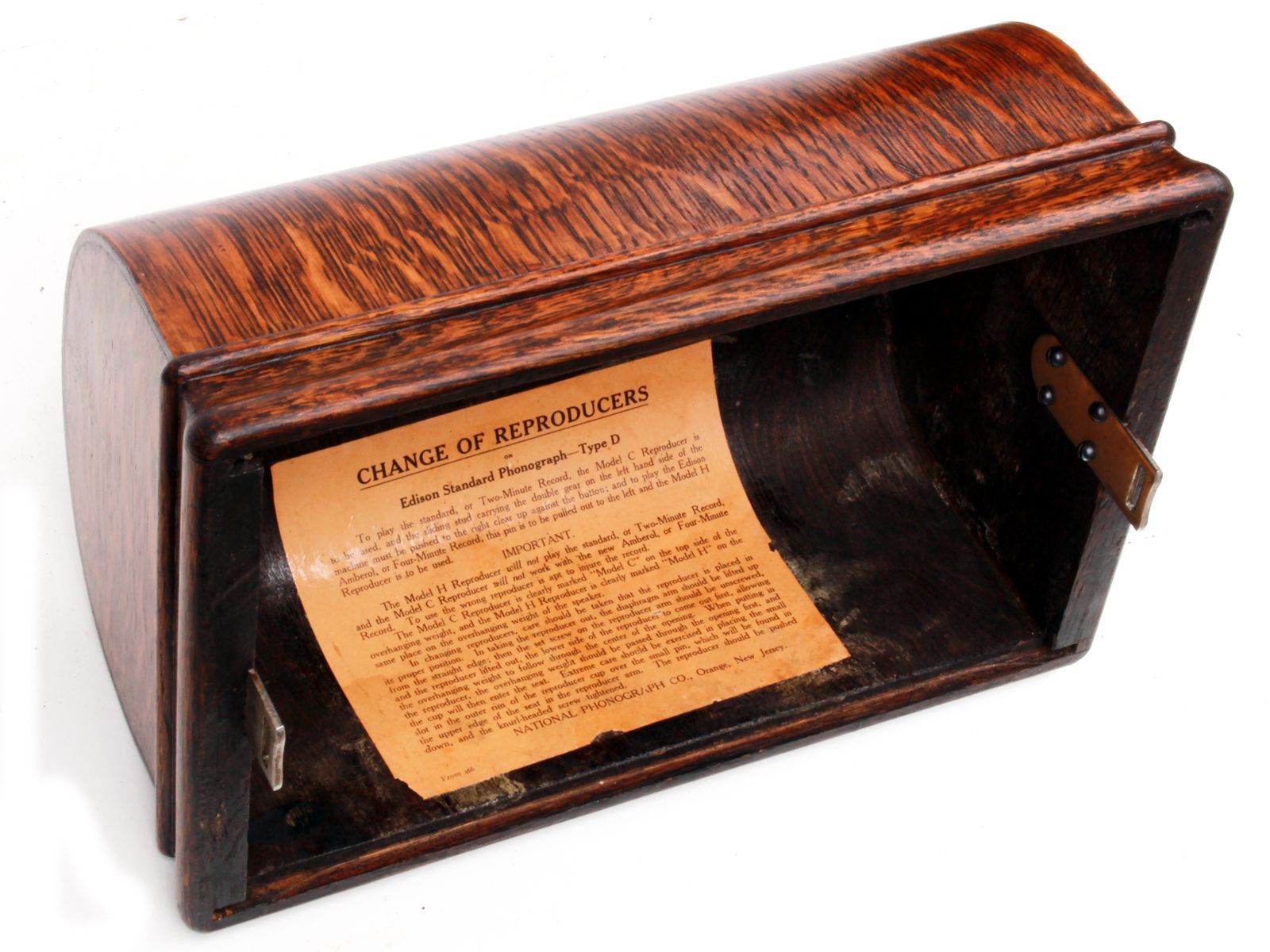

My phonograph is in mint condition, with 100% original pinstriping on the japanned bed plate, and an authentic refinish of the oak cabinet and script decal. It has the original undamaged "Change of Reproducers" slip in the lid, and both reproducers have no corrosion and have been rebuilt to perfect playing condition. Both sapphires are intact. An original 14" witch's hat horn is included, but the buyer has privilege to upgrade the horn to a flower Morning Glory or Searchlight horn, where a front-mount crane would be included. The buyer can also upgrade the two reproducers C and H to a model O combination type reproducer, mounted in an horizontal carriage with a 2 inch diameter, that is normally used for cygnet horns. No cygnet horn is included. The youtube video (ref.3 or click on thumbnail 39) shows the machine playing two cylinders: 2-min cylinder #9622 "Red Wing", sung in 1907 by Frederick H. Potter (included in sale), that has been resung by John Wayne in 3 different movies, and 4-min Blue Amberol cylinder 28289 "The Marseillaise", that is not available anymore. Please e-mail me (Kris) for any questions, ich spreche Deutsch, je parle Français.



Click on Thumbnails to Supersize Pictures
  Your browser is not Javascript-enabled
So, please Skip this Slideshow to see pictures

Here are the specifications:

Technical Description of Item
Manufacturer Thomas A. Edison et als, Orange NJ, USA
Type Standard version D, combination type
Production Year 1908

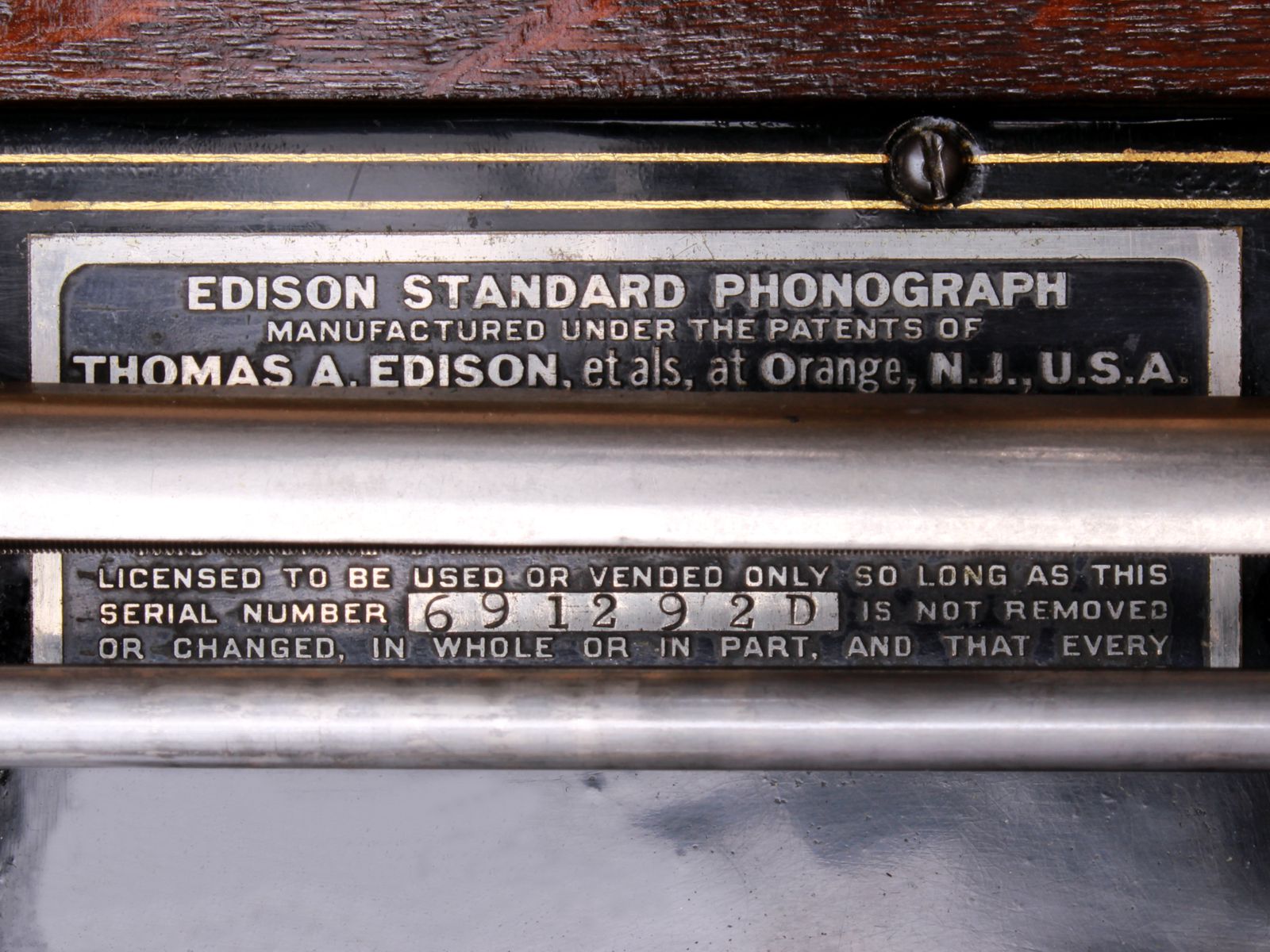

Serial Number 691292D

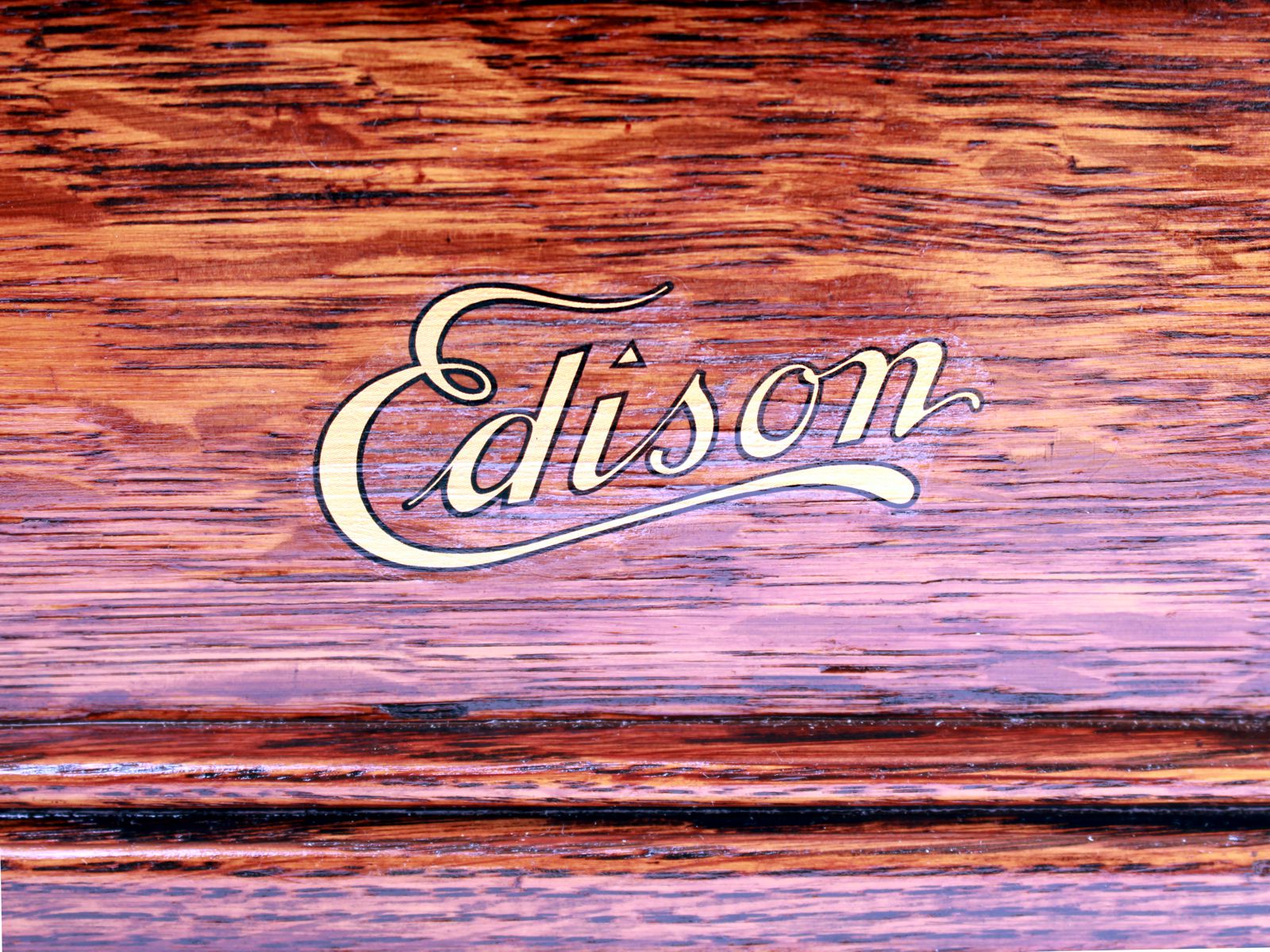

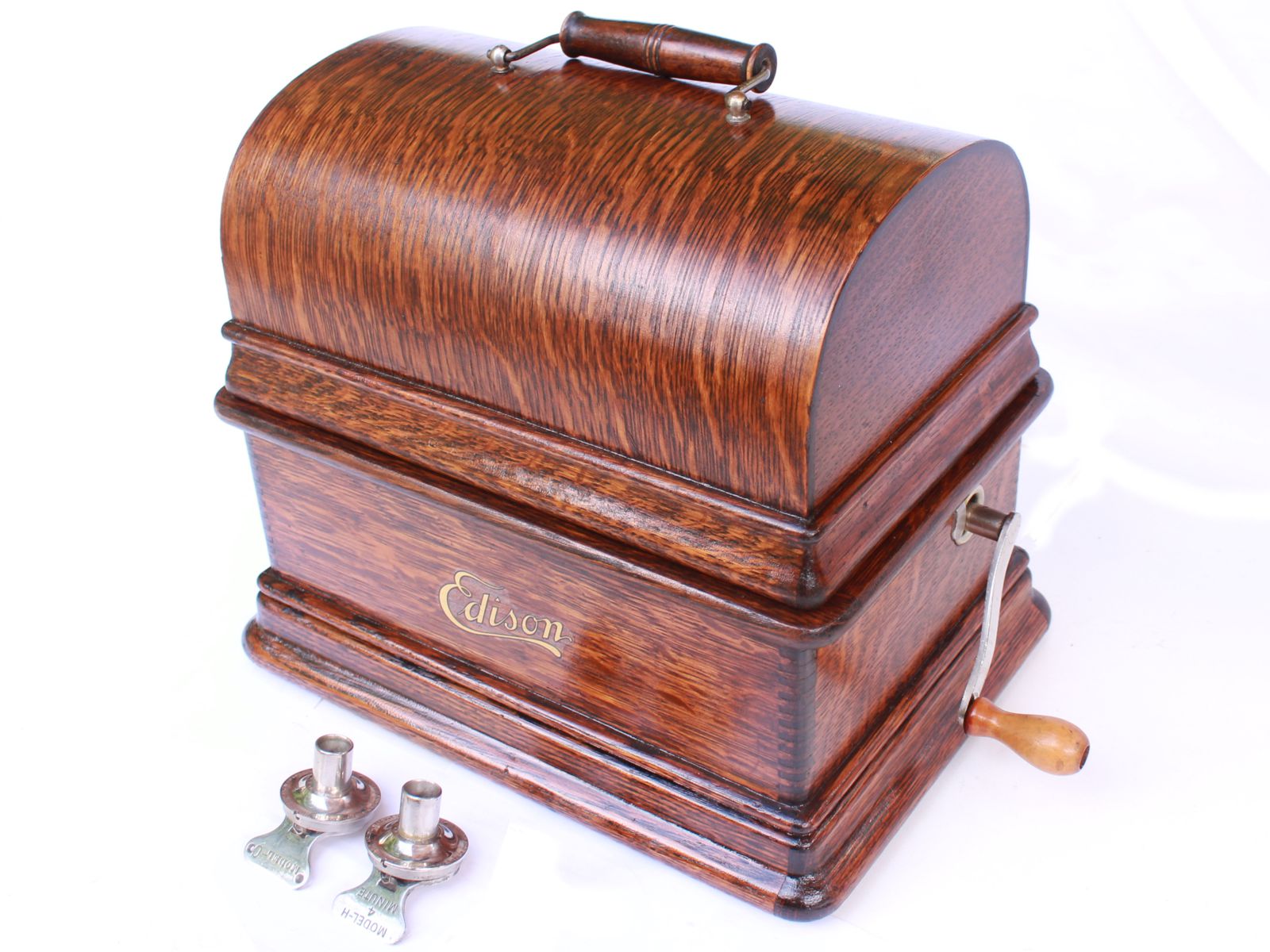

Cabinet Oak with Edison script decal

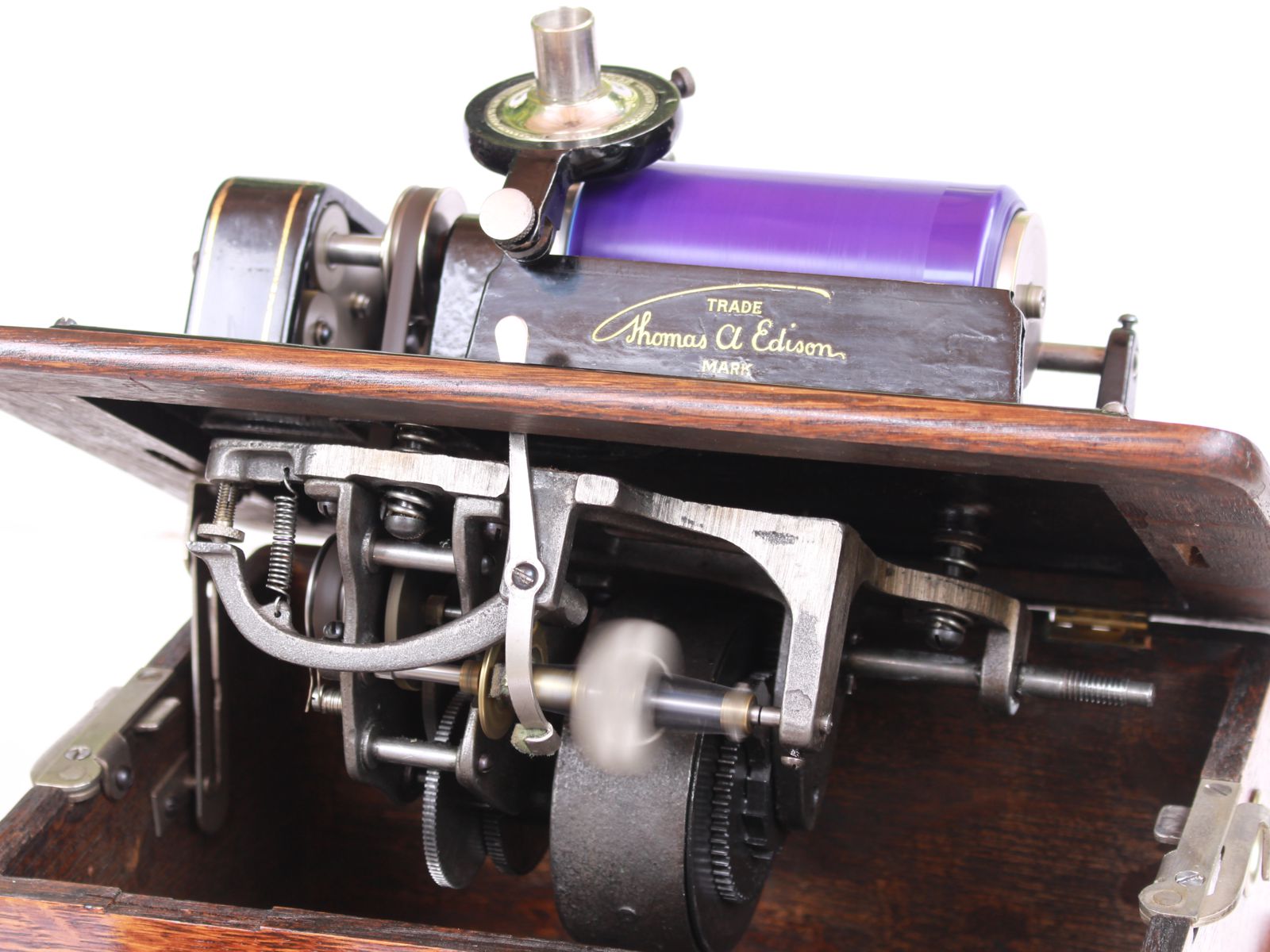

Controls Start-stop, 2min - 4min shifter, underfloor speed control

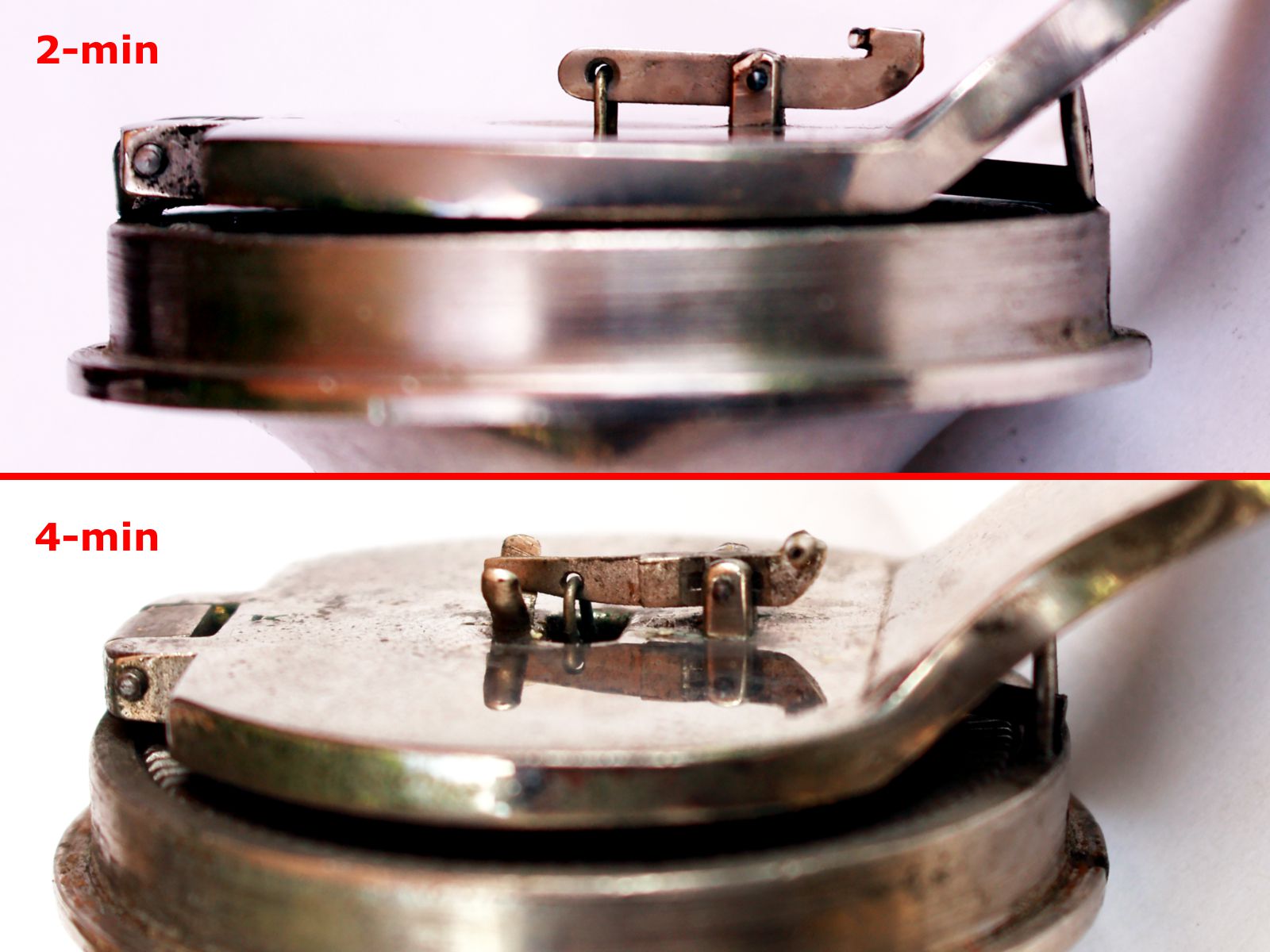

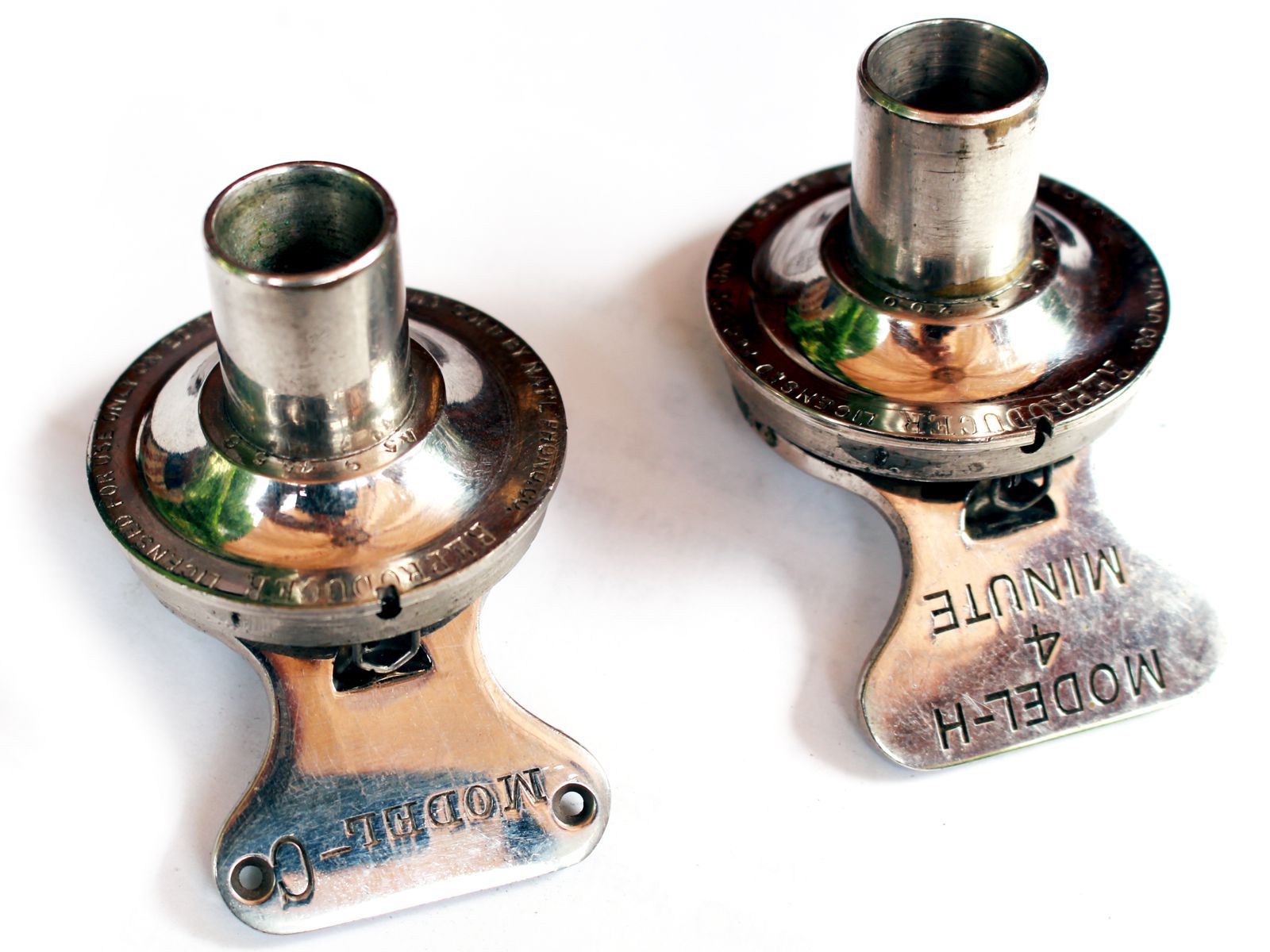

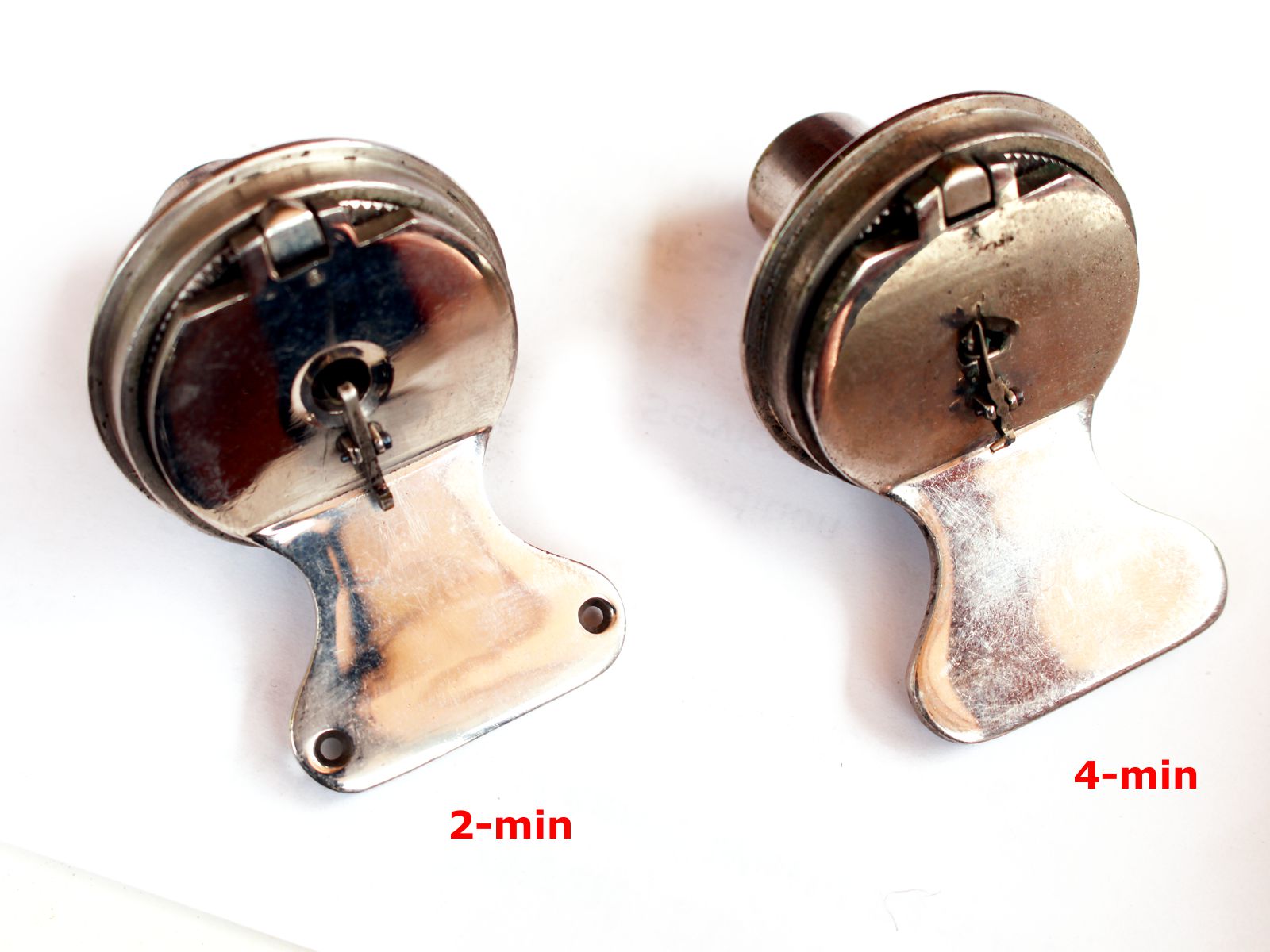

Reproducer Edison model C (2min), and model H (4min)
Size (WxDxH) 13" (without crank) x 9¼" x 12" (with handle)
Weight 20 lbs = 8.8 kg

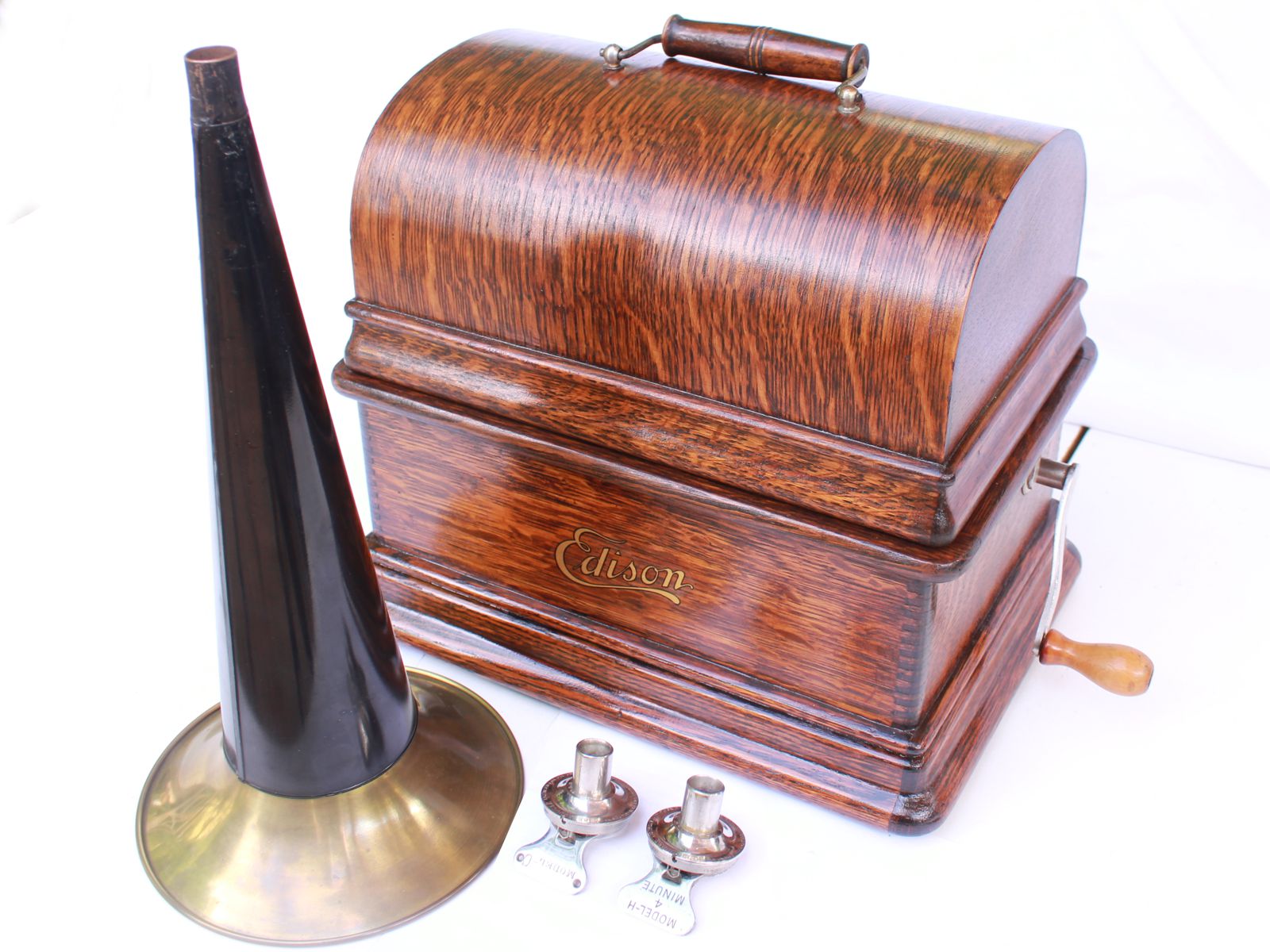

Horn Original witch's hat horn, 14" x 6¾", 7 oz.

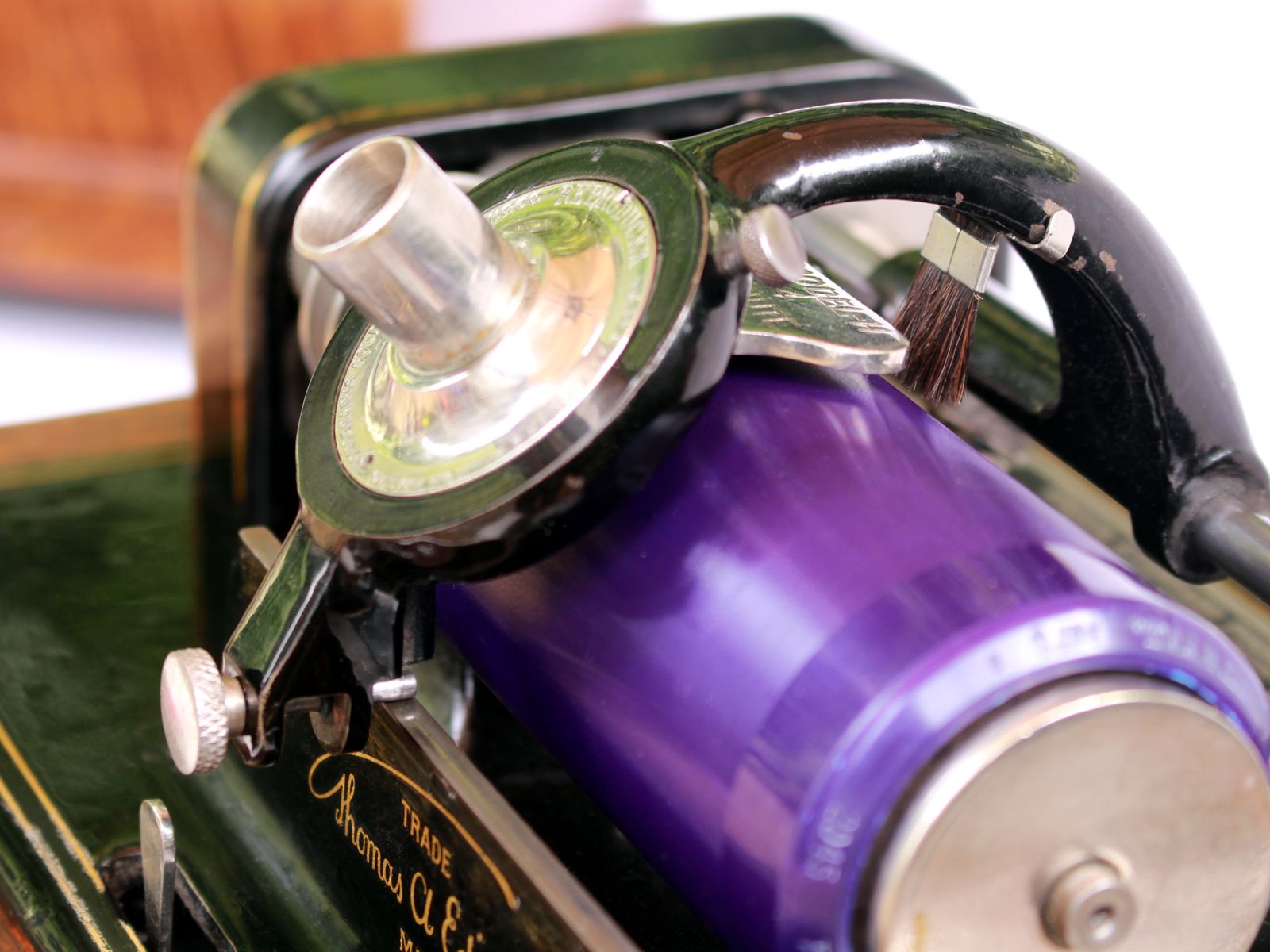

Extras Record brush, one cylinder Edison 2min wax #9622

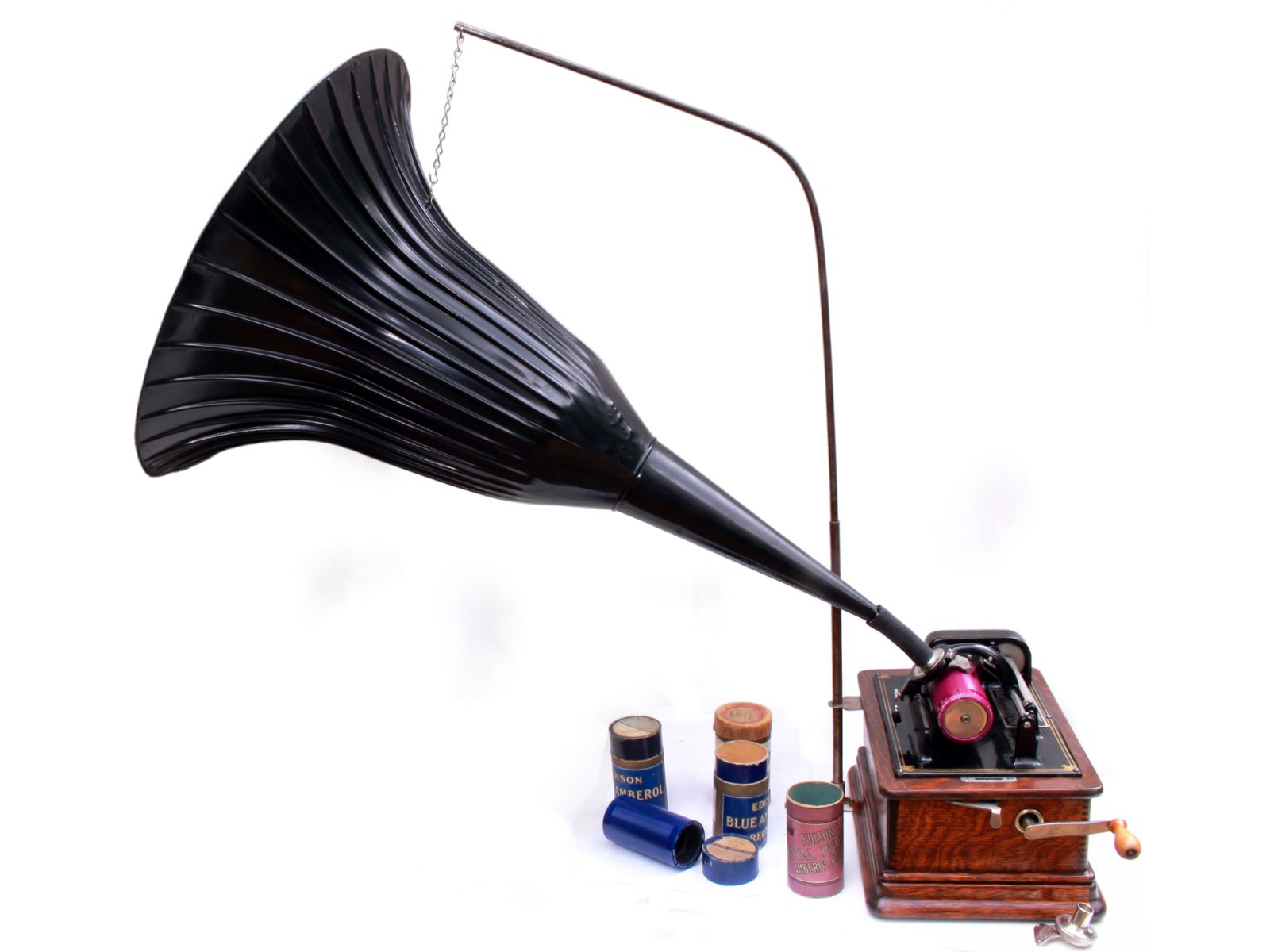

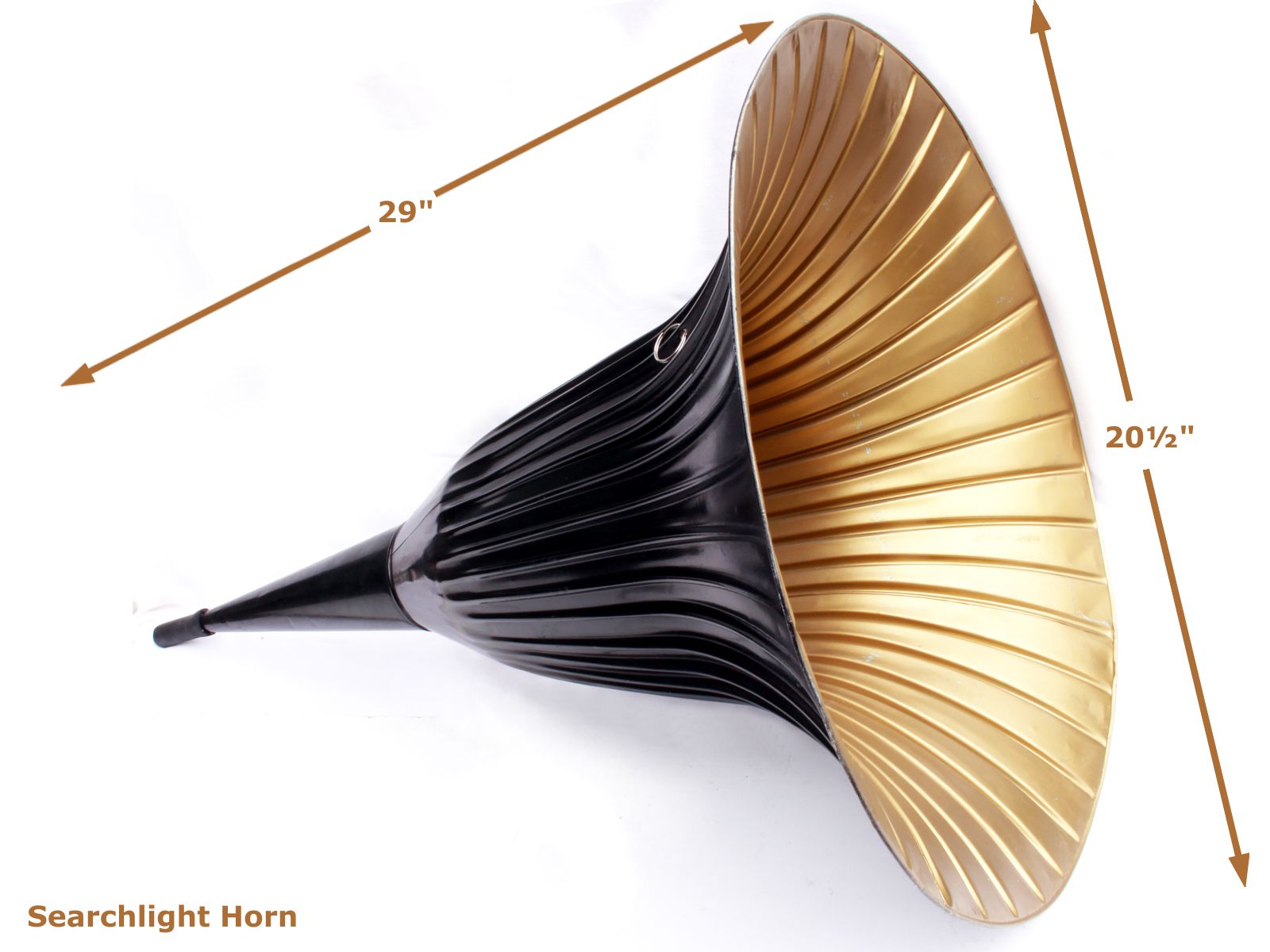

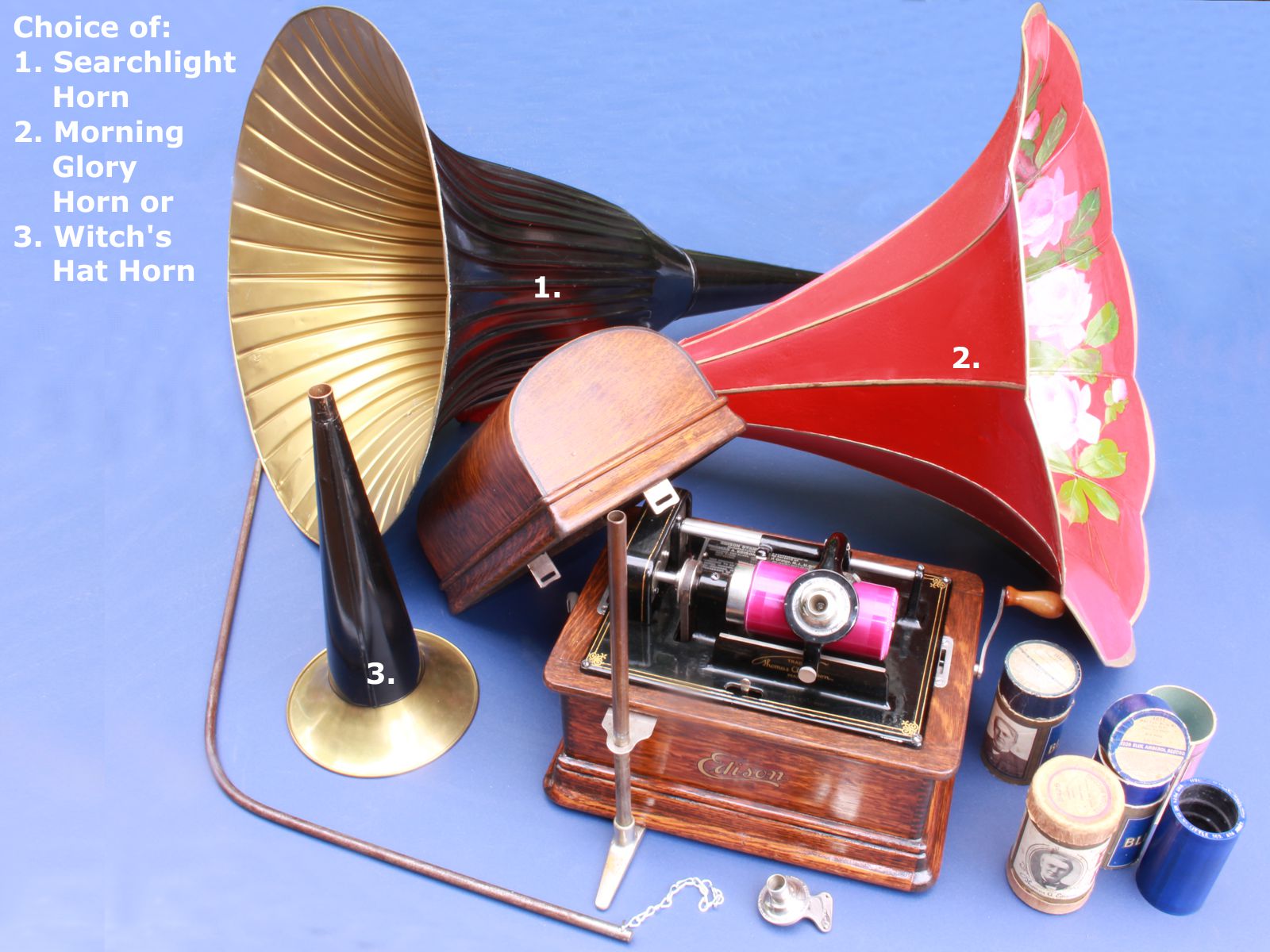

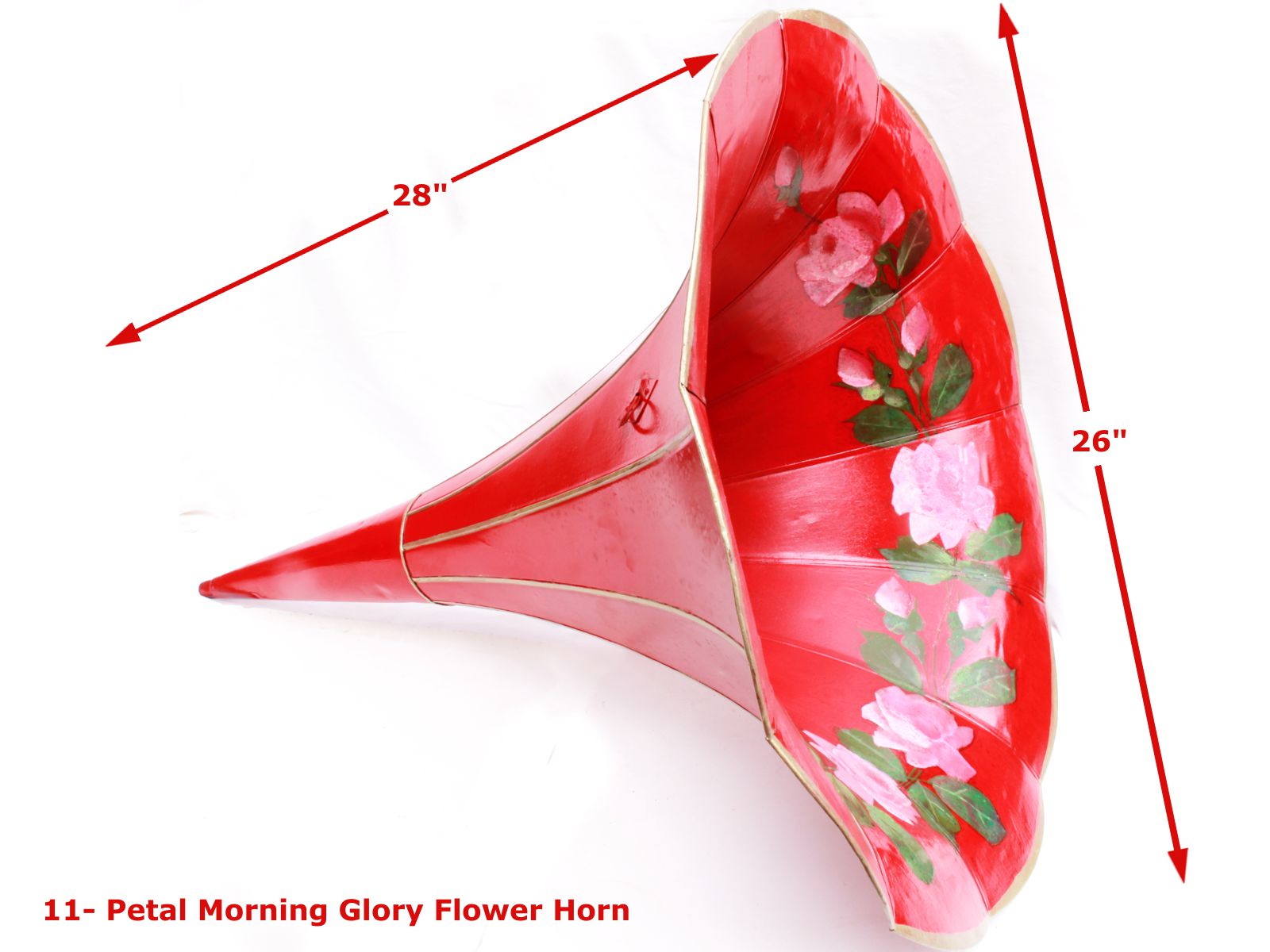

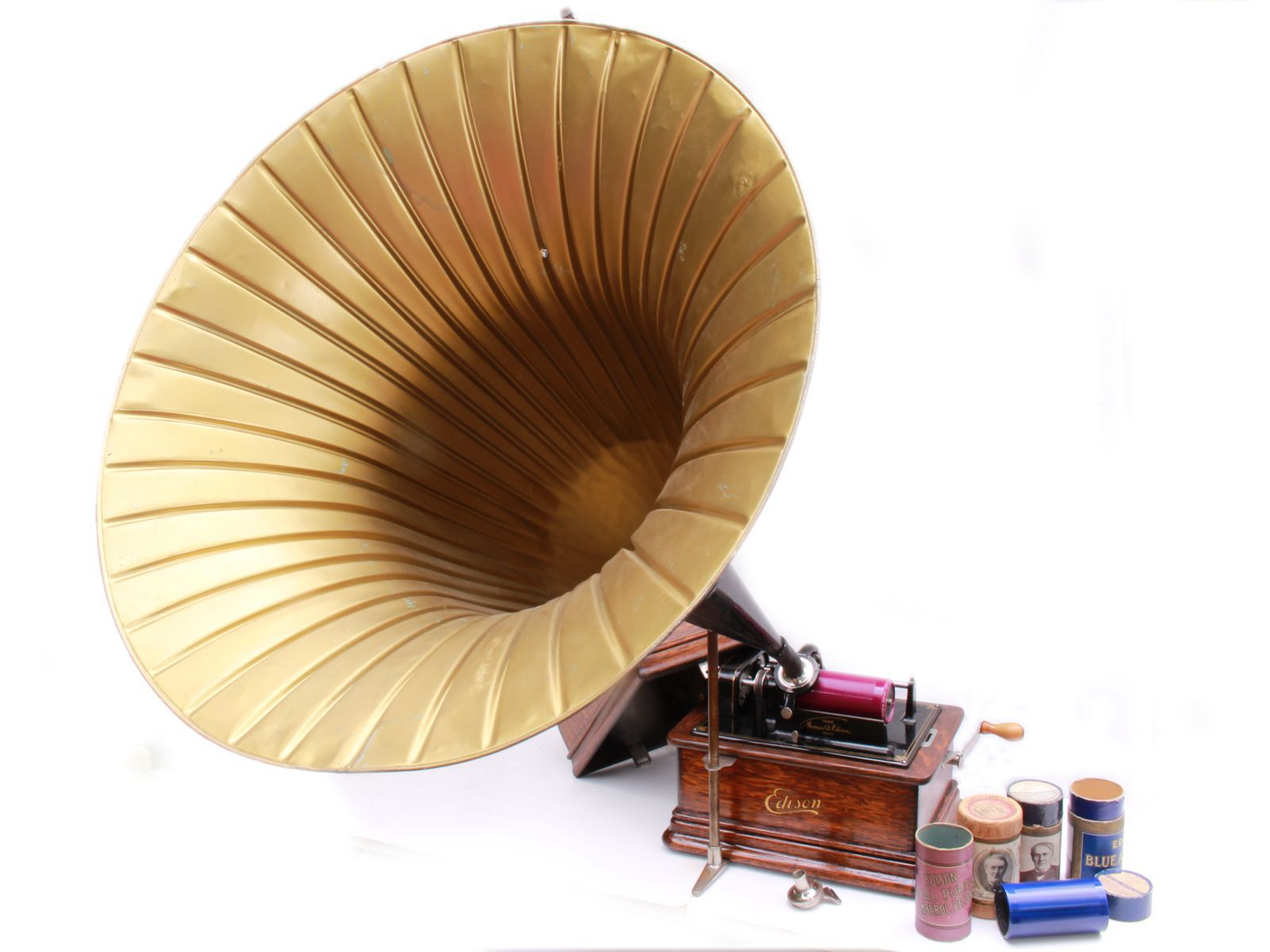

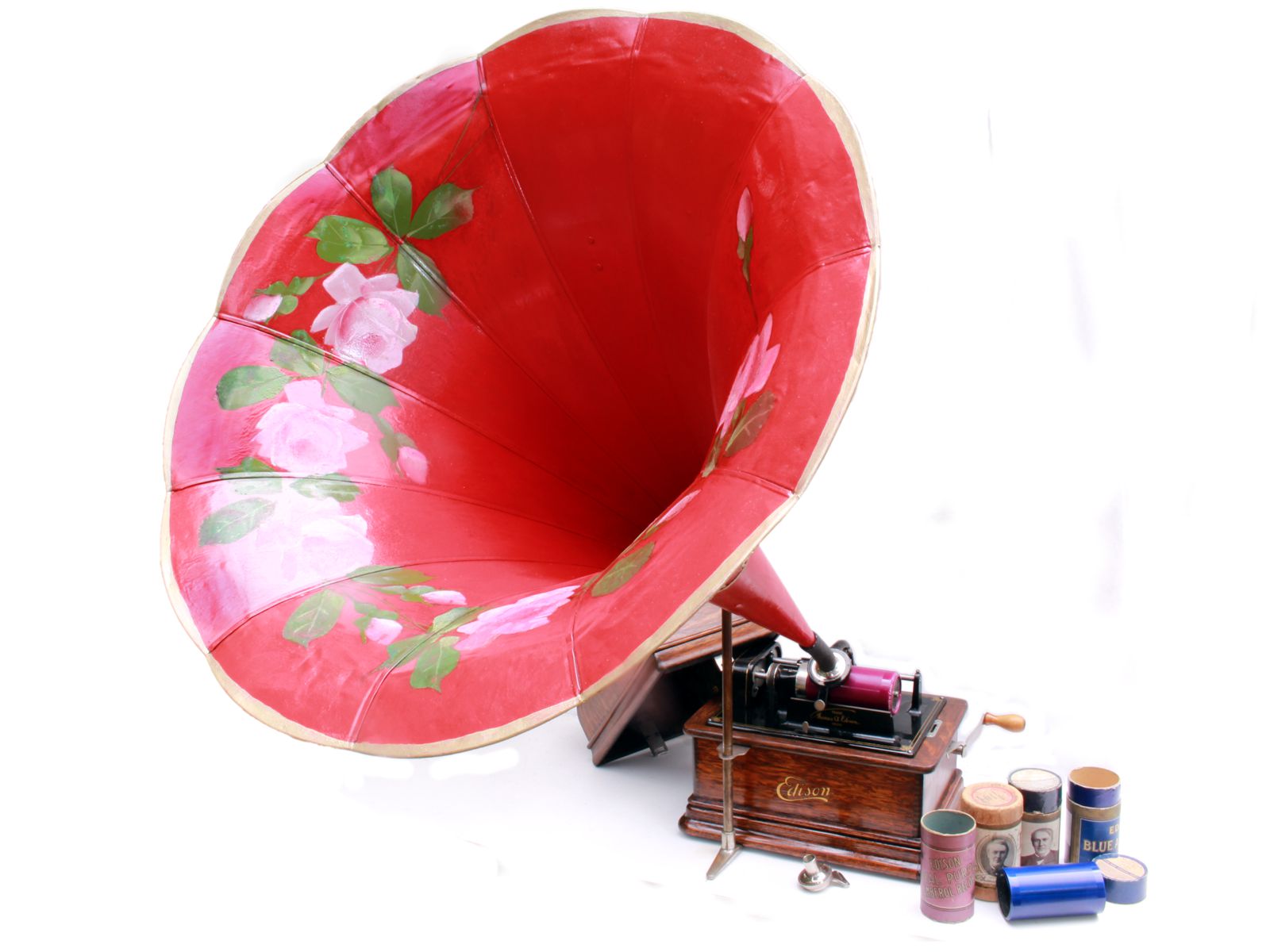

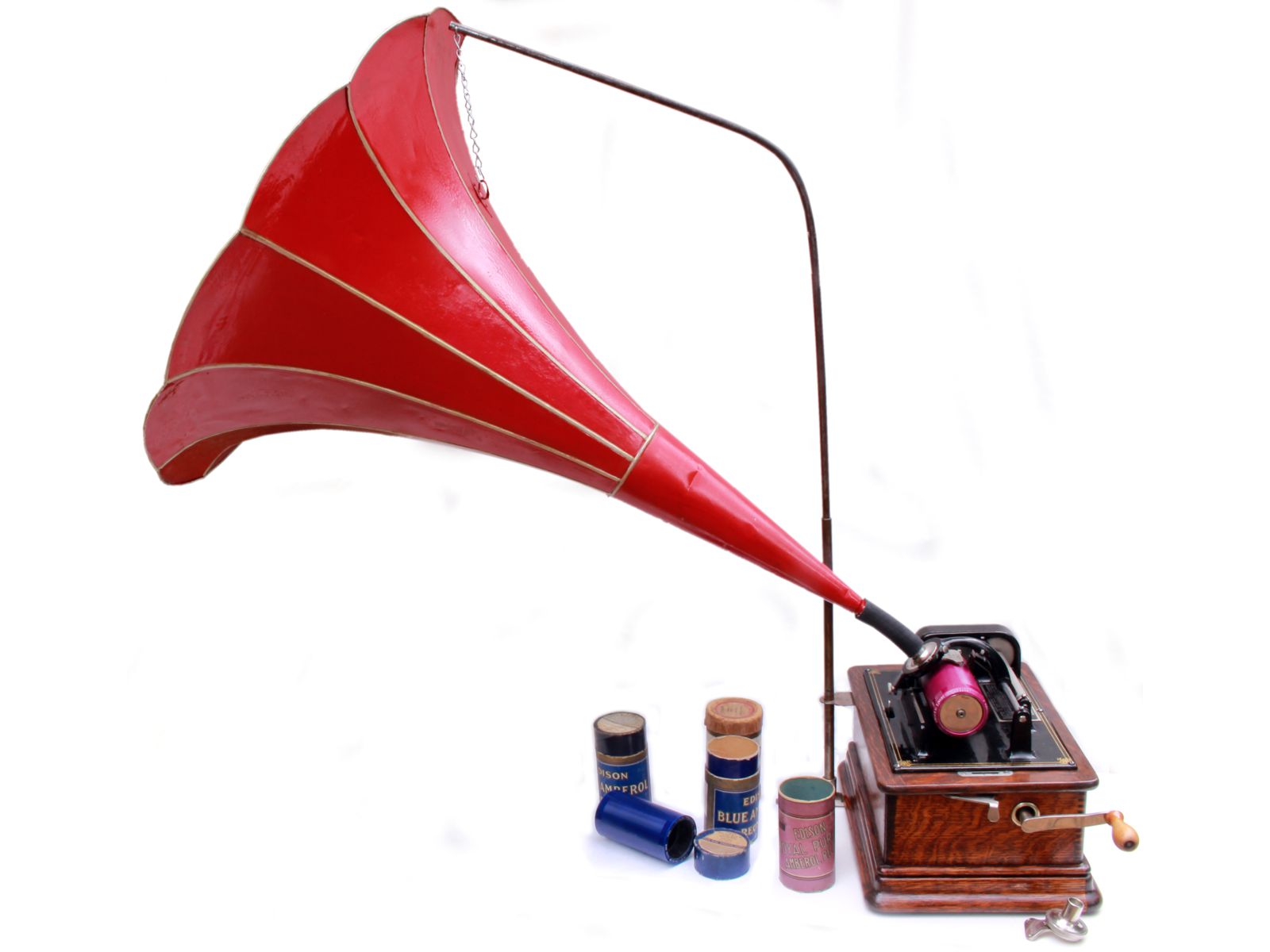

Upgrade 1 Choice of morning glory or searchlight horn plus crane (pict.s 31-36)

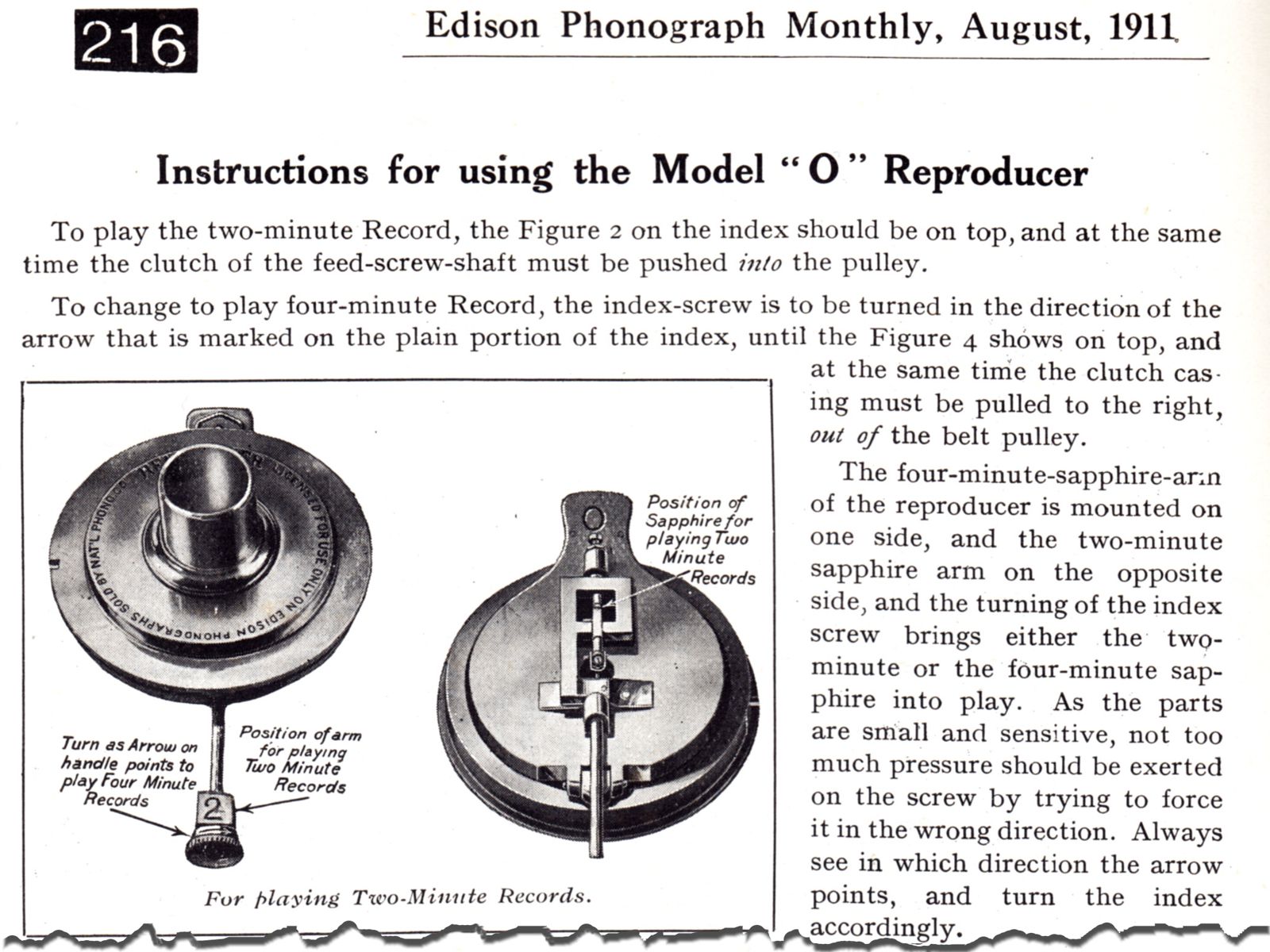

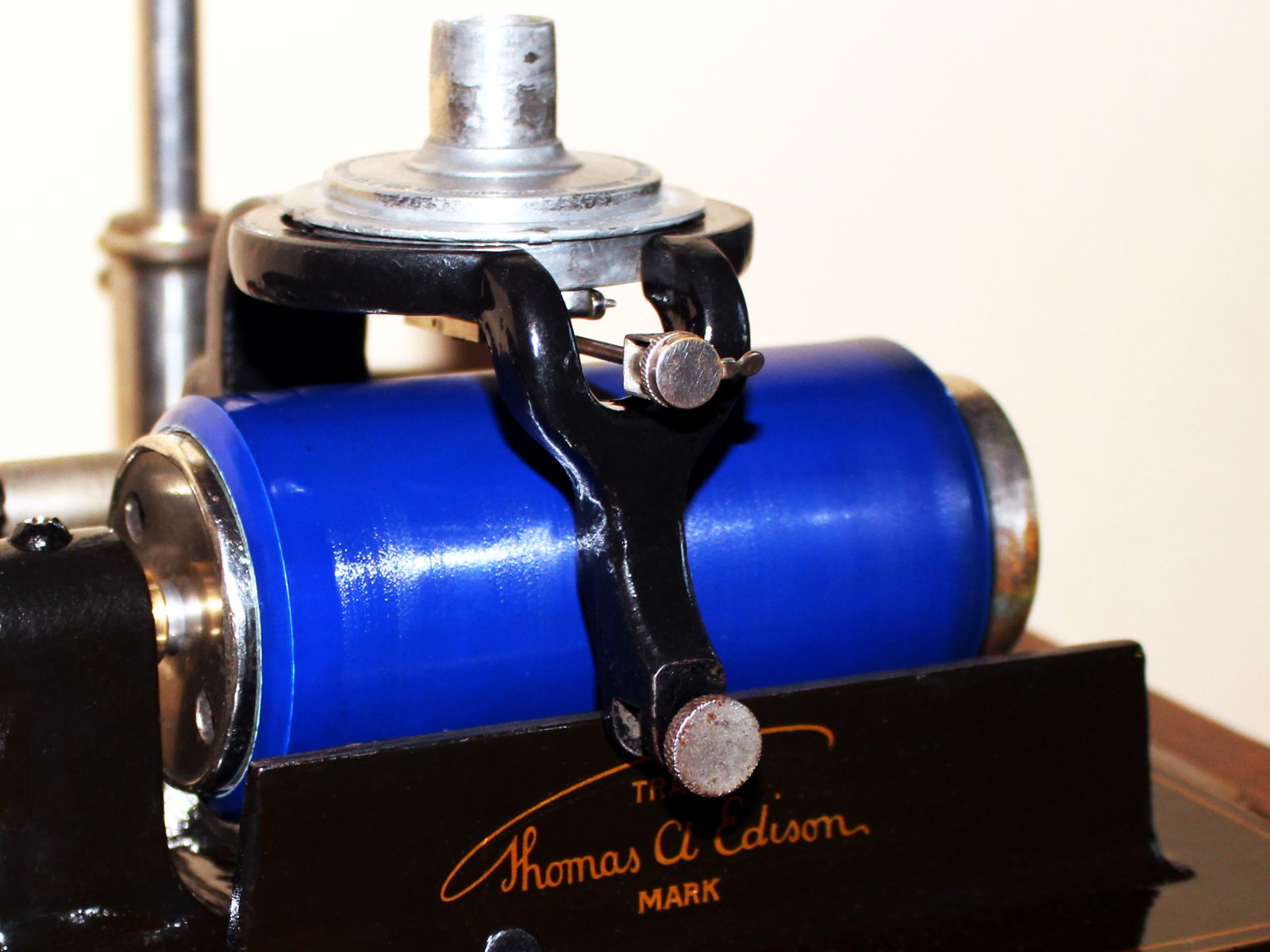

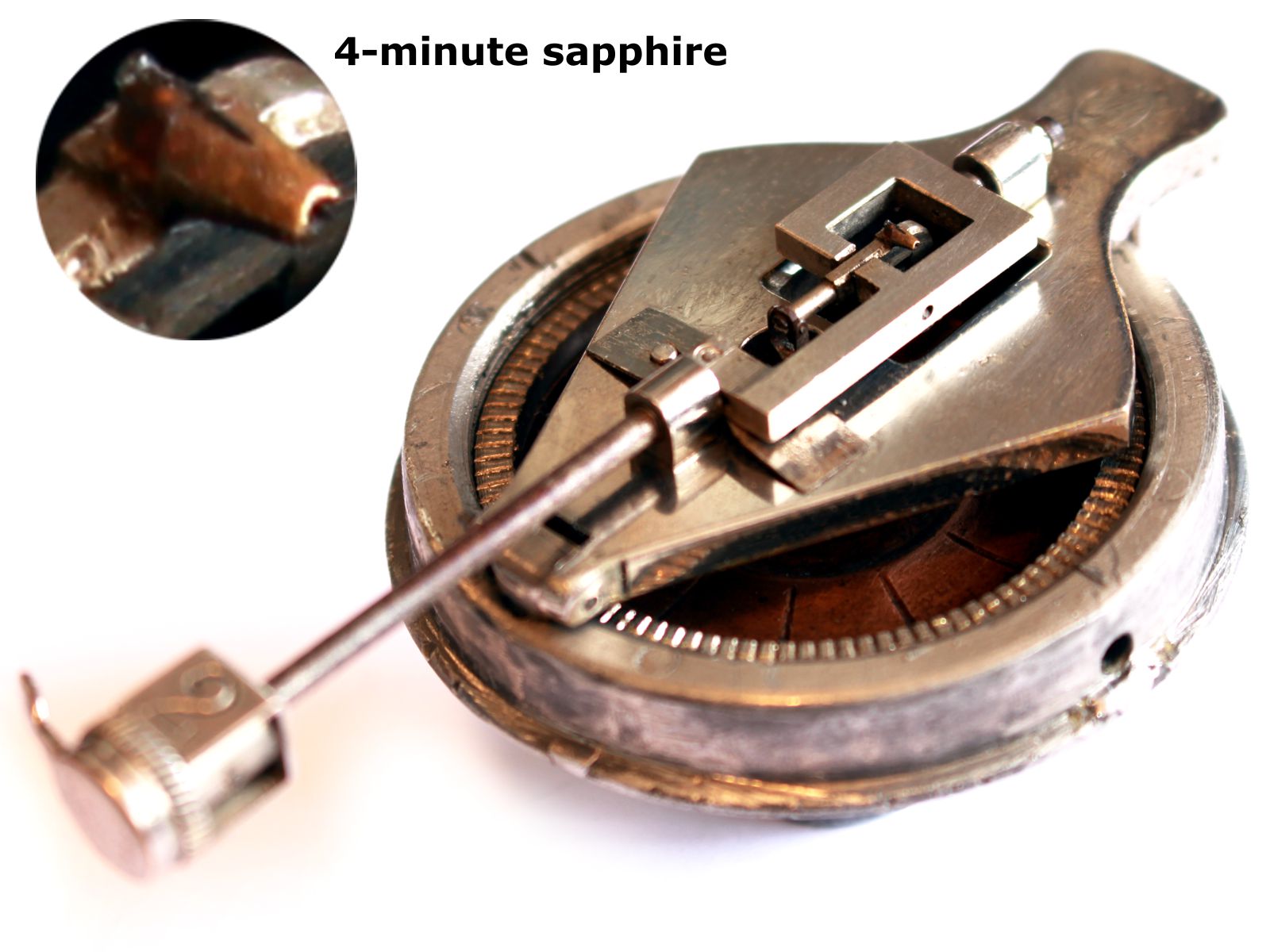

Upgrade 2 Model O reproducer plus cygnet carriage (pict.s 37-40)
Comment Highly collectible 2/4 minute combination cylinder phonograph in excellent condition
